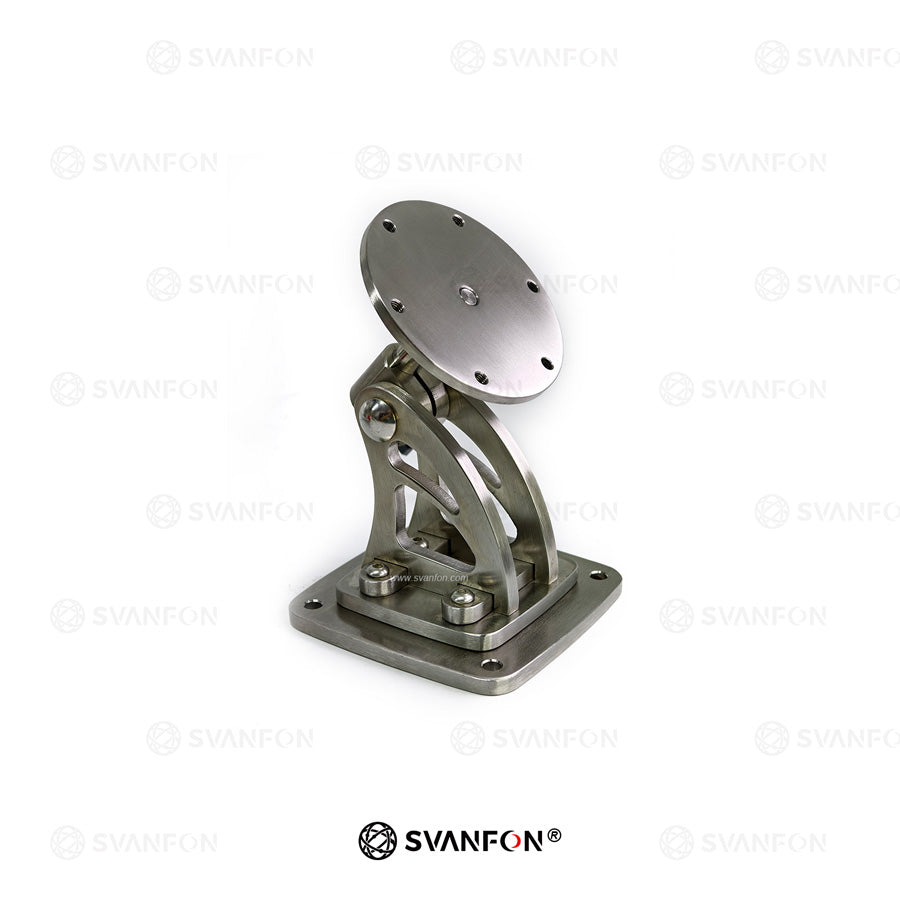

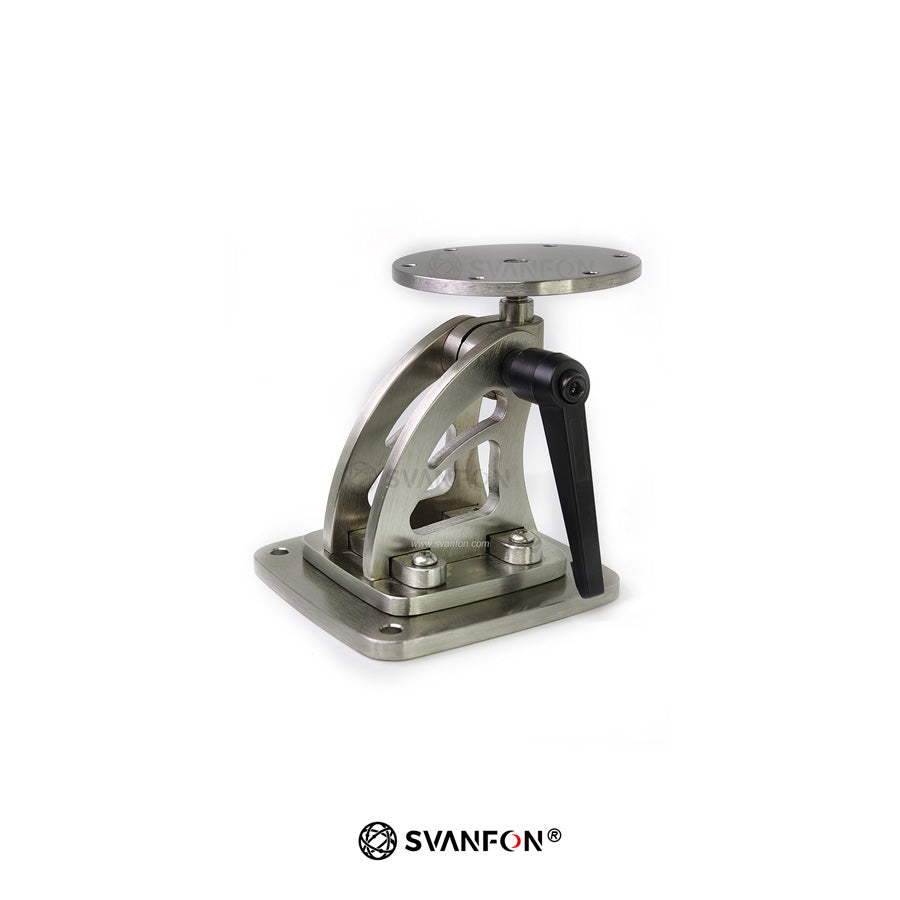

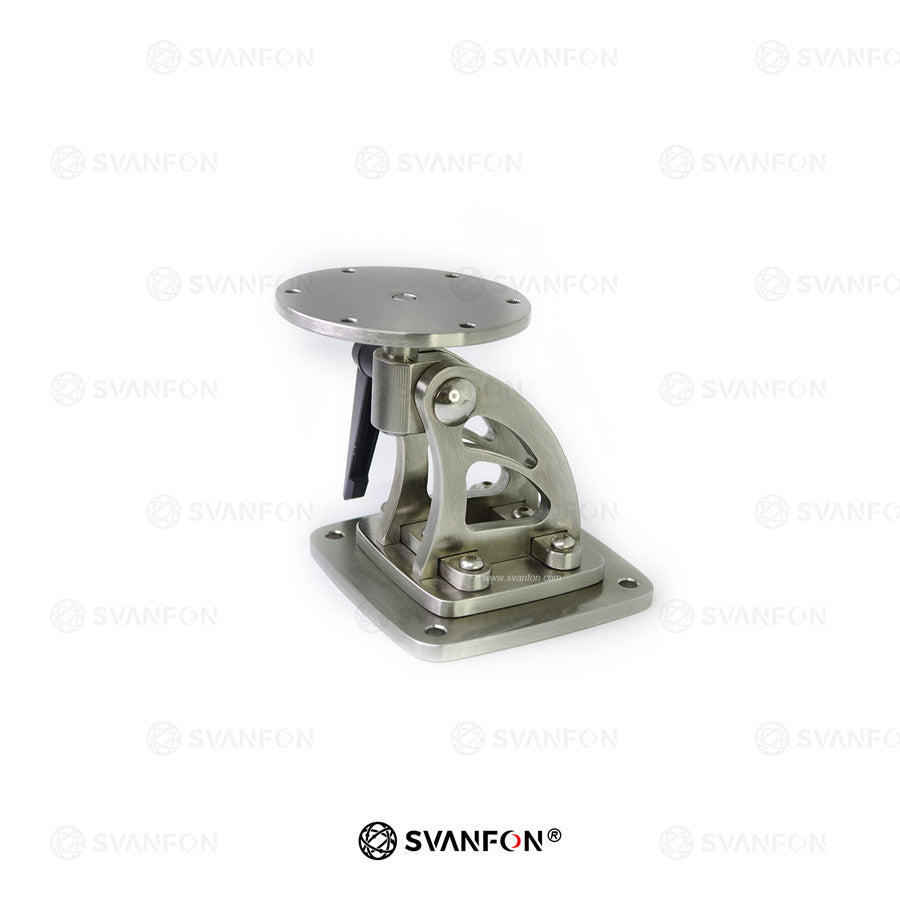

Base of Stainless Steel Universal Bench Vise

Product Introduction

I. Product Overview

This is the base of a stainless steel universal bench vise, which has a variety of practical functions and is suitable for working scenarios that require flexible operation.

II. Product Features

(I) Weight and Material

The base weighs 2.85 kg and is made of stainless steel, ensuring the sturdiness and durability of the product.

(II) Dimension Specifications

1. Rotating Tabletop

- The diameter is 110 mm, providing a certain working area.
- The thickness is 6 mm, ensuring that the tabletop has sufficient strength.

2. The Base as a Whole

- The size of the base is 120×120 mm, providing stable support.
- The hole spacing is 100×100 mm, which is convenient for fixed installation.
- The horizontal height can be adjusted between 120-150 mm, which can meet the requirements of different working heights and increase the flexibility of operation.

(III) Functional Characteristics

1. Angle Adjustment

- The angle of the base can be tilted forward and backward, enabling the bench vise to adapt to different working angle requirements during the operation process and facilitating the processing of work pieces.
2. Rotating Function

- The tabletop can be manually adjusted and rotated at will, allowing operators to easily adjust the work piece to the desired direction and improve work efficiency.
