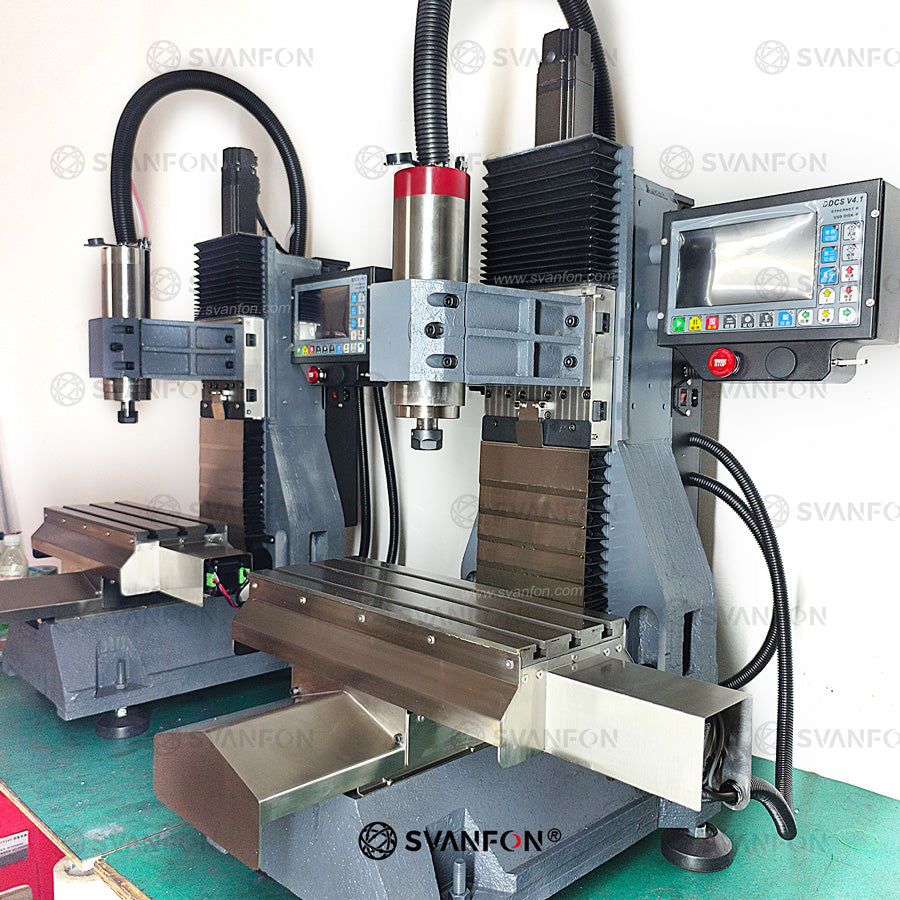

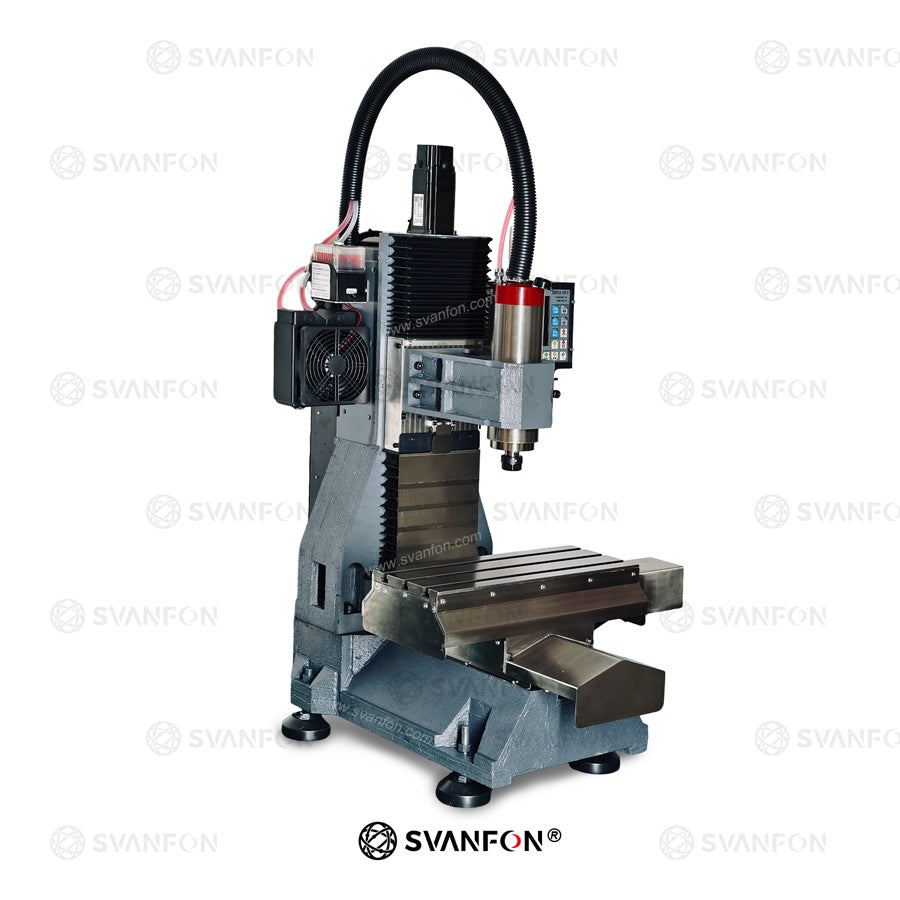

Mini CNC Milling Machine – Metal Engraving & Cutting Mill
Mini CNC Milling Machine – Metal Engraving & Cutting Mill
SvanFon
Regular price
$3,980.00 USD
Regular price
Sale price
$3,980.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Svanfon Mini Precision CNC Machine
⚠️ This product weighs approximately 200kg and is only available for sea freight, with an estimated delivery time of 50–60 days. If this delivery time is unacceptable, please order with caution.
Specifications
Spindle Motor
• Power: 2.2 KW • Speed: 24000 rpm• Collet: ER20 (Clamp size Ø1–13 mm)
Worktable
Size: 400×100 mm • Slot Type: T-slots •T-slots Number of : 3 • Slot Pitch: 40 mm
Overall Dimensions & Weight
• Length: 650 mm • Width: 600 mm • Height: 1000 mm
• Net Weight: approx. 180 kg
• Shipping Weight: Approximately: 210kg
• Packaging: Wooden box(750mmX750mmX1100mm)
• Packaging: Wooden box(750mmX750mmX1100mm)
• Power Supply: 220V(minimum requirement)
Positioning Accuracy
• X / Y / Z Axis: ≤ 0.02 mm
Product Features
#Full-Axis Protection
The machine is fully enclosed with a 304 stainless steel protective cover to prevent chips, coolant, and other contaminants from entering, effectively prolonging machine life and enhancing operator safety.
Mini CNC Milling Machine – 24000RPM Spindle, High Accuracy
#Machine Highlights
1. High Rigidity Material
The machine bed is cast from HT250 cast iron and stress-relieved for excellent rigidity and stability. It minimizes vibration during machining, ensuring high precision.
2. High-Speed Spindle & Drive
Equipped with a 24000 rpm high-speed water-cooled spindle and closed-loop stepper drive system, the machine offers high-efficiency and precision for milling and drilling applications in mold and 3C industries.
#Mechanical Structure
1. Bed & Protection
• HT250 cast iron bed with aging treatment for deformation resistance.
• Full-axis protection with 304 stainless steel enhances safety and durability.
2. Worktable
• Size: 400×150 mm
• Provides a stable support platform for small precision parts.
#Travel Range – Three-Axis Travel
• X-axis: 200 mm
• Y-axis: 150 mm
• Z-axis: 250 mm
• Optimized for small precision parts, suitable for various processing scenarios.
Mini CNC Mill 3-Axis – Compact Milling Machine for Precision Parts
#Transmission System
1. Guides and Screws
Equipped with HGH20 linear guideways and 1605 ground ball screws, screw accuracy up to C5 level. Integrated C5 bearing blocks ensure smooth and precise transmission.
2. Motors & Feed Rates
Closed-loop stepper motors for X/Y/Z axes with torques: 2.8 Nm (X), 3.0 Nm (Y/Z).
Max feed rate: 3500 mm/min, supporting fast and accurate movements.
Desktop CNC Milling Machine with 2.2KW Spindle – Mini CNC Mill
#Spindle System
• Cooling: Water-cooled
• Power: 2.2 KW
• Collet Type: ER20
• Clamping Range: Ø1–13 mm
• Speed Range: 2000–24000 rpm
• Stepless speed adjustment supports diverse machining processes.
CNC Mini Mill with Ball Screws & Linear Guides – 0.02mm Accuracy
#Precision Specifications
• Linear Accuracy (X/Y/Z): ≤ 0.02 mm / full length
• Verticality: ≤ 0.02 mm / 300 mm
• Positioning Accuracy: ≤ 0.02 mm
• Repeatability: ≤ 0.02 mm
• High-precision design ensures dimensional and geometric accuracy of machined parts.
Order Processing Notice:
Please note that this product is currently in the production queue and cannot be shipped immediately. It takes 15 days to manufacture, and we will arrange shipment as soon as production is completed. Thank you for your patience!
