Mini Metal Lathe – Micro Tabletop Lathe for DIY Metalworking

Mini Lathe Instruction Manual

Product Highlights

A unique DIY lathe model that combines decorativeness and practicality, adding a distinctive charm to workplaces or offices.

Product Appearance and Dimensions

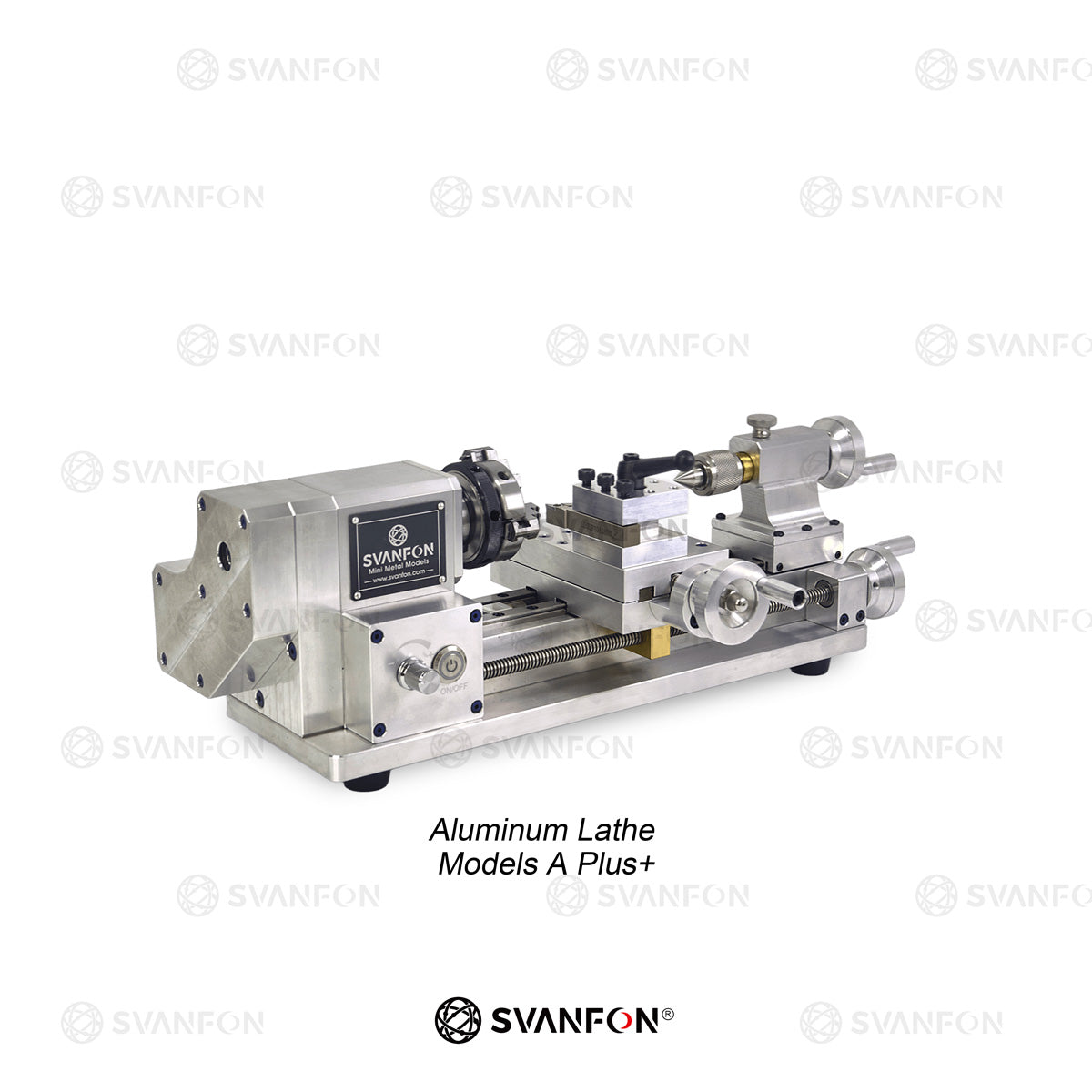

 Model A Plus (Silver - Aluminum Plus): Machine dimensions: 400 - 215- 150(unit: mm), weight 7.0kg, shipping weight 9.0kg.

(Rated voltage: 220v, Output torque: 800g.cm-1500g.cm, Maximum workpiece diameter for clamping: Φ50mm, Maximum workpiece clamping length: 95mm, Maximum rotation speed of chuck: 3000rpm,
Worktable X-axis total travel: 50mm, Total Z-axis travel of workbench: 70mm, Total Z-axis travel of tailstock: 70mm, Part machining accuracy: 0.003mm.)

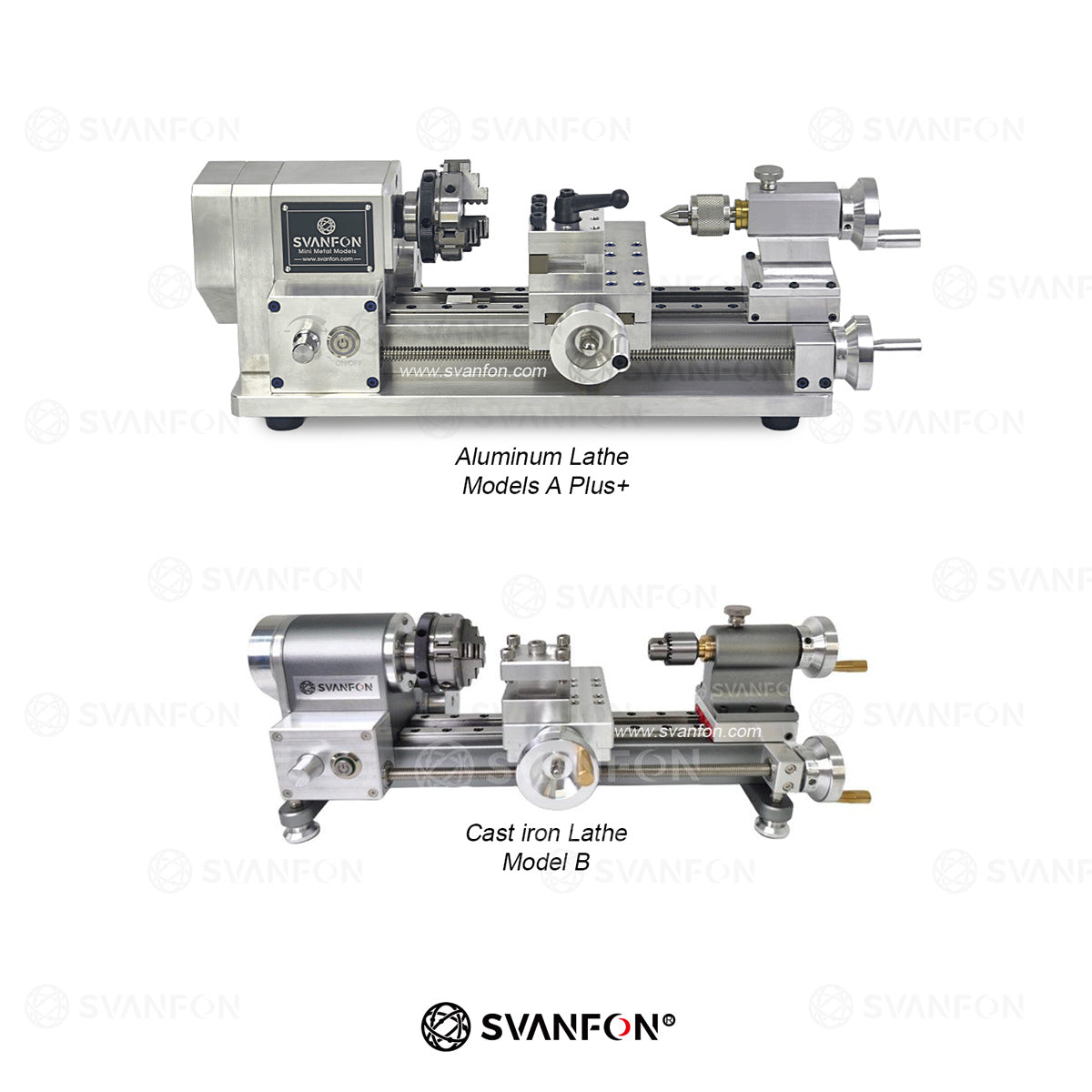

Model B (Silver - gray, Cast Iron): Machine dimensions: 363 - 190 - 133 (unit: mm), weight 7.60 kg, shipping weight 9.0kg.

Product Parameters

Chuck Parameters: Diameter 50 mm, clamping range 1 - 30 mm, spindle through - hole 9 mm, maximum speed 2000 rpm (speed - adjustable).

Turning Length: ≤ 100 mm.

Motor Parameters: Maximum power 80 W, input voltage 220 V, DC 24 V, maximum speed 4000 rpm ± 5%.

Tail stock Parameters: Center ≤ 4 mm, stroke 16 mm.

Applicable Materials

Model A is suitable for soft metals such as aluminum and copper, as well as plastics. In addition to the above materials, Model B (cast - iron model) can also be used for lightweight turning of steel ornaments.

Model A is now upgraded to Model A Plus, featuring reinforced structure and improved quality assurance for even greater reliability.

Precautions

This product is mainly used for the simple processing of DIY handicrafts or small parts such as jewelry, watches, and toys, mainly for display and decoration purposes, and cannot be compared with professional processing machine tools.

Avoid overheating and overloading of the motor, and do not operate at high speed for a long time.

Product Value

The mini lathe has unique value in many aspects.

For those engaged in the machining industry and machine tool sellers, it is an excellent decoration for offices or company exhibition halls. Its small and delicate appearance is in sharp contrast to traditional large and bulky lathes, which can not only highlight the industry characteristics but also add an artistic atmosphere to the space.

For handicraft enthusiasts, it is a powerful tool for DIY small parts. Although it cannot perform high - load processing like traditional large - scale lathes, it can meet the processing needs of lightweight and small items such as jewelry, watch parts, and small toys, allowing people to experience the joy and sense of satisfaction in the creation process.

In addition, it can also be used in teaching scenarios. Its intuitive operation and small size provide convenience for teaching activities and help students better understand the processing principles and procedures of lathes.

In conclusion, the mini lathe can play an important role in different scenarios with its unique charm and value.
