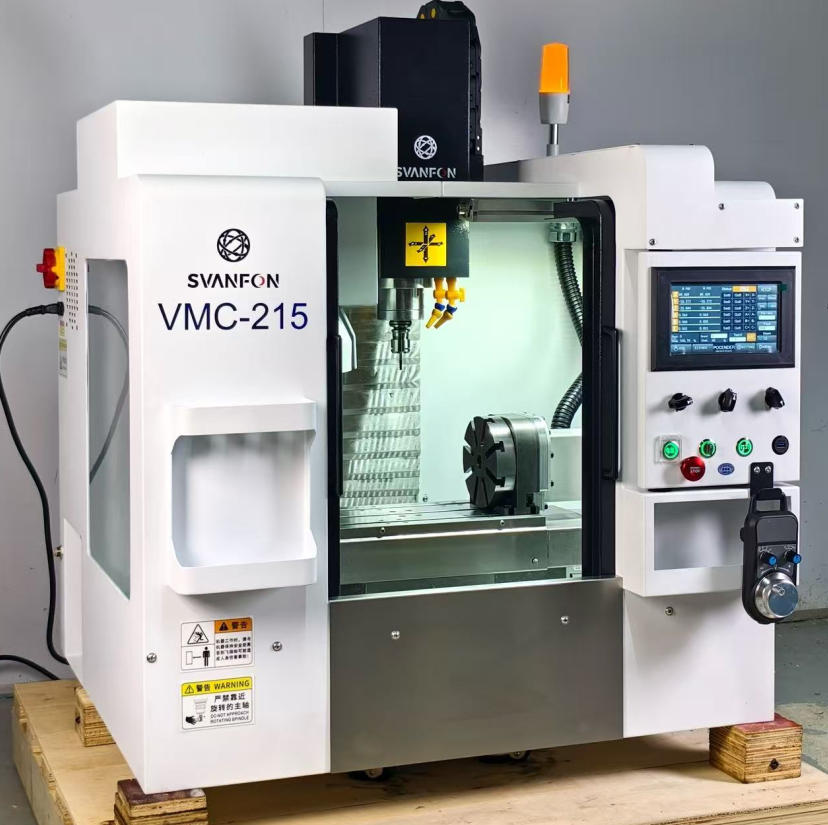

VMC215 Small 3-Axis/4-Axis Benchtop CNC Vertical Machining Center | Desktop CNC Mill & Engraving Machine | Mini Precision Equipment

1. Equipment Overview

This machine is suitable for processing a wide range of materials—including metals (iron, aluminum, copper, stainless steel), wood, and acrylic—meeting diverse application needs and providing efficient solutions for prototyping, DIY projects, and personalized manufacturing.

2. Core Parameters

(1) Dimensions and Weight

Overall dimensions: 880×810×1100 mm
Net weight: approx. 250 KG
Compact structure, suitable for various workshop layouts, easy for installation and transportation.

(2) Travel Parameters

X-axis travel: 200 mm
Y-axis travel: 150mm
Z-axis travel: 220 mm

(3)  Drive System

XYZ, and tool magazine axes are driven by 400W absolute servo motors.

(4) Spindle Configuration

The machine provides two spindle options, with belt-driven spindle as standard:
1.Standard: Belt-driven spindle, 0.75 KW, 10,000 RPM, natural cooling
2.Optional: Motorized spindle, 2.2 KW, 24,000 RPM, water cooling
Spindle interface: ISO20-ER20
High-performance spindles cover most machining applications and ensure stable and efficient cutting.

3. Equipment Advantages

(1) Structural Design

Fully Enclosed Sheet Metal: The fully enclosed protective design ensures operational safety and a clean working environment.

Guide Rails and Ball Screws: Industrial-grade square guide rails feature high rigidity and precision. Combined with high-precision ball screws, the movement is smooth and stable, guaranteeing consistent machining accuracy.

(2)Counterweight System: The machine is equipped with a counterweight balance system to offset the weight of the spindle, greatly reducing the operating load of the Z-axis, improving motion stability and extending service life.

(3)Control System: 7-inch touch screen control with standard wireless handwheel, offering user-friendly and efficient operation.

(3)Filtration; Cooling System: 7-inch touch screen control with standard wireless handwheel, offering user-friendly and efficient operation.

(4)Control System: The machine is equipped with a filtration water tank and circulating water pump for clean and efficient coolant recycling.

(5)ATC Tool Changer: The machine is equipped with an automatic tool change (ATC) magazine with 10 tools. It realizes automatic tool change under complex working conditions, supports automated continuous processing, improves machining efficiency, and meets the production requirements of multi-process and complex workpieces.

Scope of Application

Widely used in fields such as hardware prototyping, mold making, and small-part milling. Capable of processing a variety of materials, including iron, aluminum, copper, stainless steel, wood, and acrylic.

Under normal conditions, after order confirmation, the production cycle is about 25-30 days.
