2 Inch Quick-action Universal Vise for vmc215

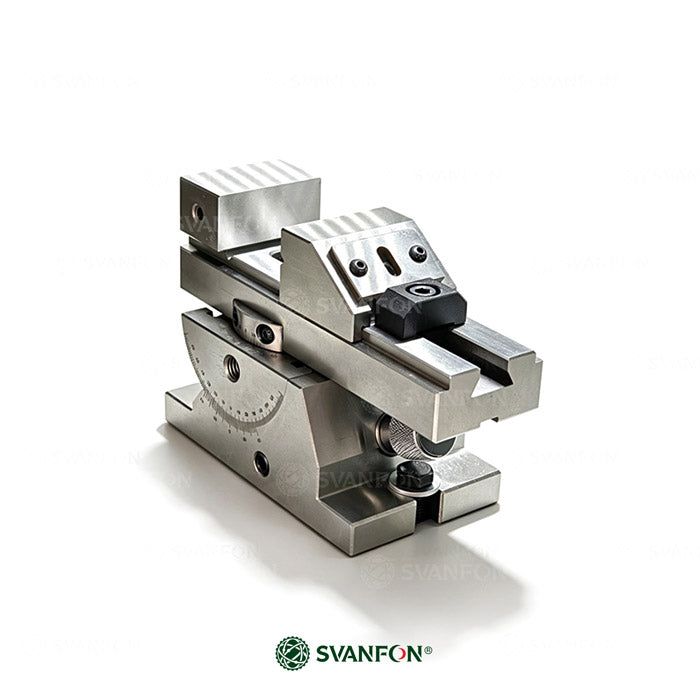

2" Quick-action Universal Vise

Specifications
Jaw Width: 50mm
Max Opening: 75mm
Base Length: 155mm
Base Width: 75mm
Jaw Height: 25mm
Vise Body Length: 155mm
Vise Body Height: 104mm
Weight: 4.8kg
U-groove Width: 11mm
Adjustment Range: 0~60° tilt + 360° horizontal rotation

Features
Double-layer universal angle base, supporting 360° horizontal rotation and 0~60° tilt adjustment. Quick-move vise body for fast rough stroke adjustment. Equipped with cross V-groove jaws to securely clamp round and square workpieces. Clear scales on base and rotary table for intuitive and accurate angle setting. Made of tool steel for high hardness.

Cross V-groove Jaws

The cross V-groove design firmly holds workpieces and improves clamping stability.

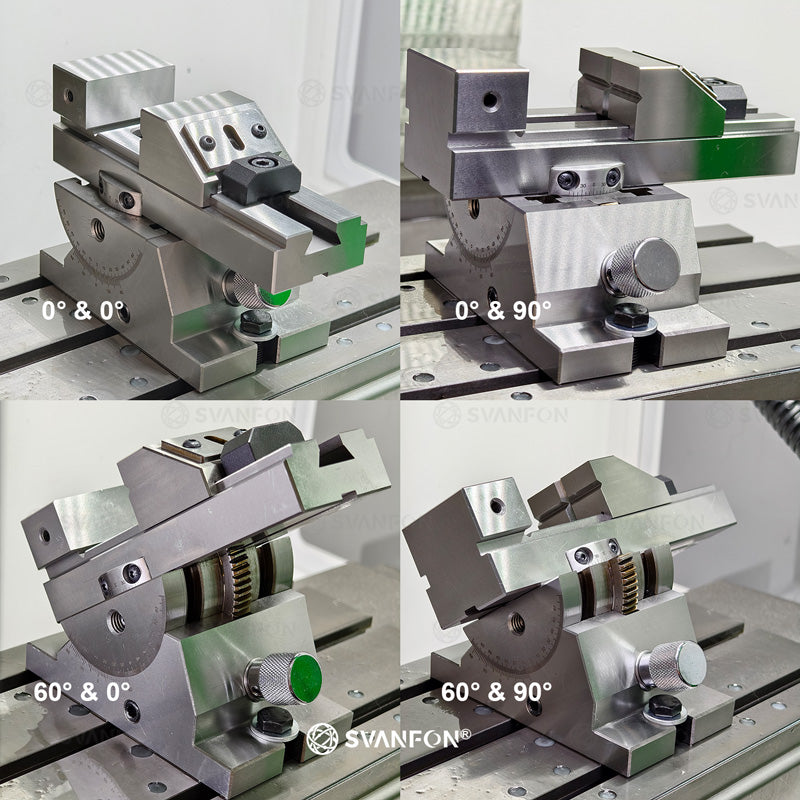

Flexible Dual-Axis Positioning
Adjust base tilt and jaw rotation independently for complex machining.
