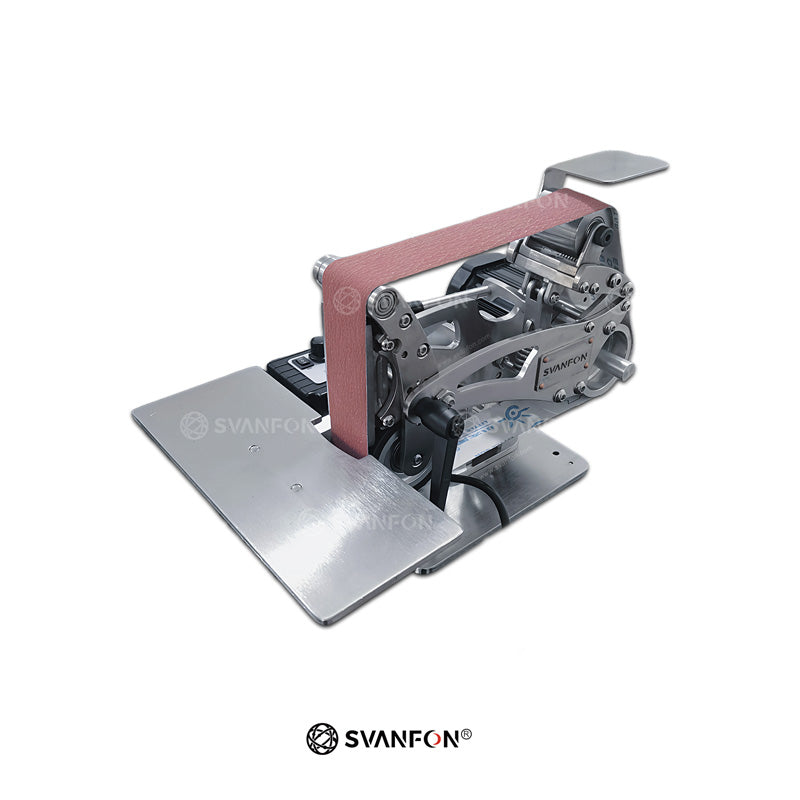

Svanfon Stainless steel Belt Sander Machine

Stainless steel 915 Belt Sander Machine

I. Core Technical Parameters

1. Power: 750 W, DC Brushless Motor
2. Voltage: AC 220V
3. Belt Size: 915×50 mm
4. Torque: 2.4 N·m
5. Linear Speed: 21.5 m/s
6. Net Weight: 21 kg
7. Overall Dimensions (L×W×H): 320×280×300 mm
8. Base Dimensions: 210×230 mm
9. Worktable Dimensions: 105×260 mm
10. Speed Regulation: Stepless Speed Change, Digital Speed Display

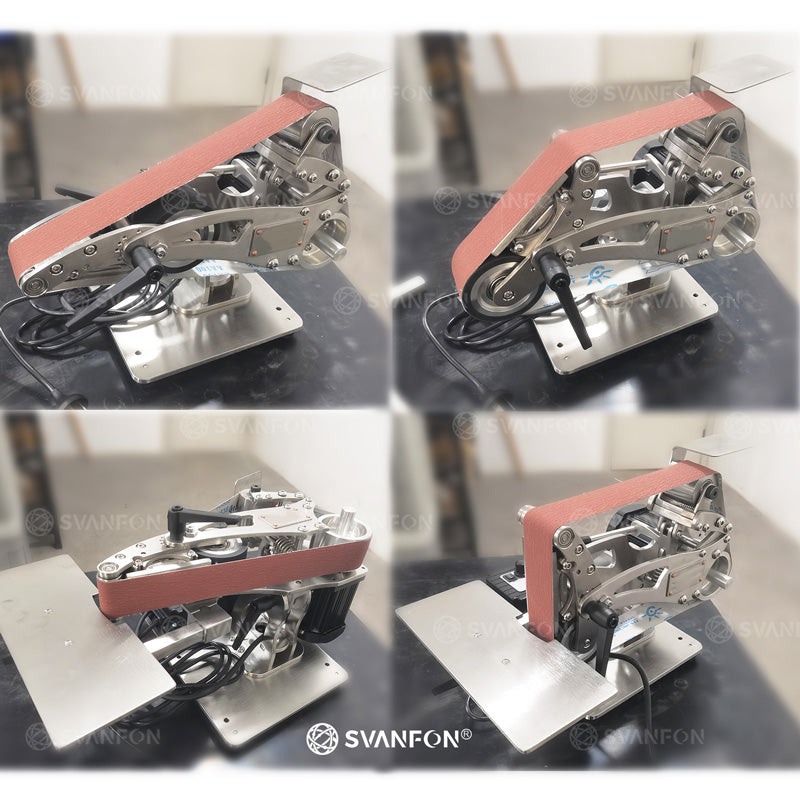

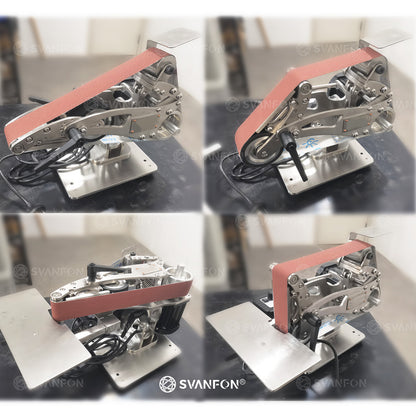

11. Operation Functions: Deflectable, Forward & Reverse Rotation Supported, Vertical & Horizontal Dual-use; Switch between flat grinding, concave grinding and contour grinding by adjusting the angle without disassembling parts

II.  Product Structure & Features

1. Body Material: Main body made of 201/304 Stainless Steel

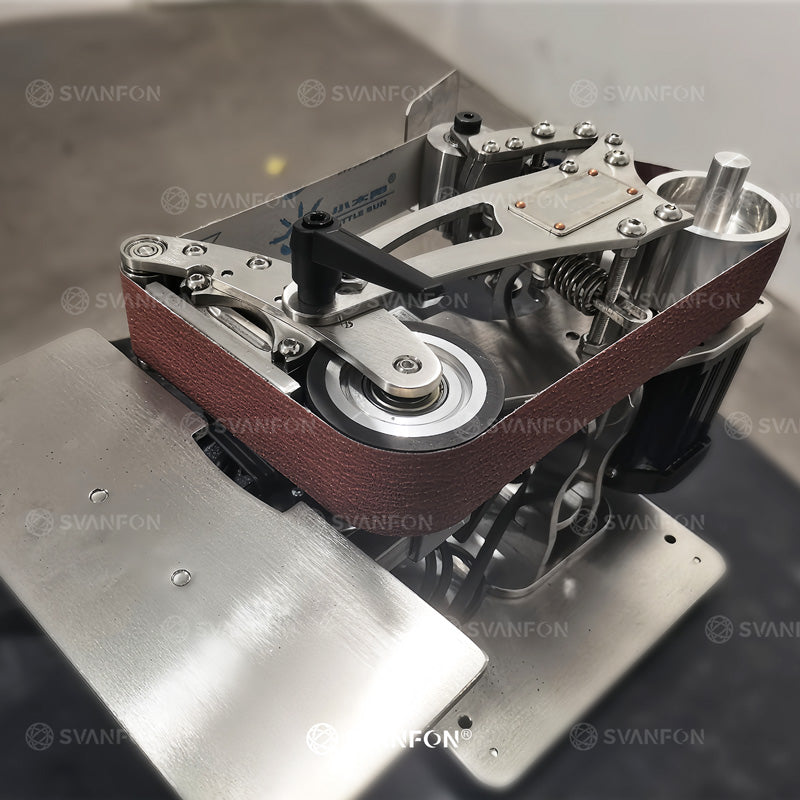

2. Wheel Component Dimensions
- Groove Wheel: Diameter 25 mm
- Small Sun Wheel: Diameter 80 mm
- Tracking Wheel: Diameter 50 mm
- Drive Wheel: Diameter 80 mm
3. Expansion Functions: The drive wheel is equipped with connecting rods, allowing the installation of universal additional accessories such as polishing wheels, drill chucks and backing pads

III. Application Scope
1. Processable Materials
Iron, steel, aluminum, copper, wood, plastic, etc.

2. Core Application Scenarios
Tool sharpening and polishing, metal derusting and decontamination, wood chamfering, plastic edge grinding, etc.

IV. Standard Accessories List
1. Sanding Belts: Size 915×50 mm - 100 Grit, Quantity: 5 Pcs
