Compact 3Axis 4Axis CNC Milling Machine | Small Benchtop CNC Engraving Milling Machine

1. Equipment Overview

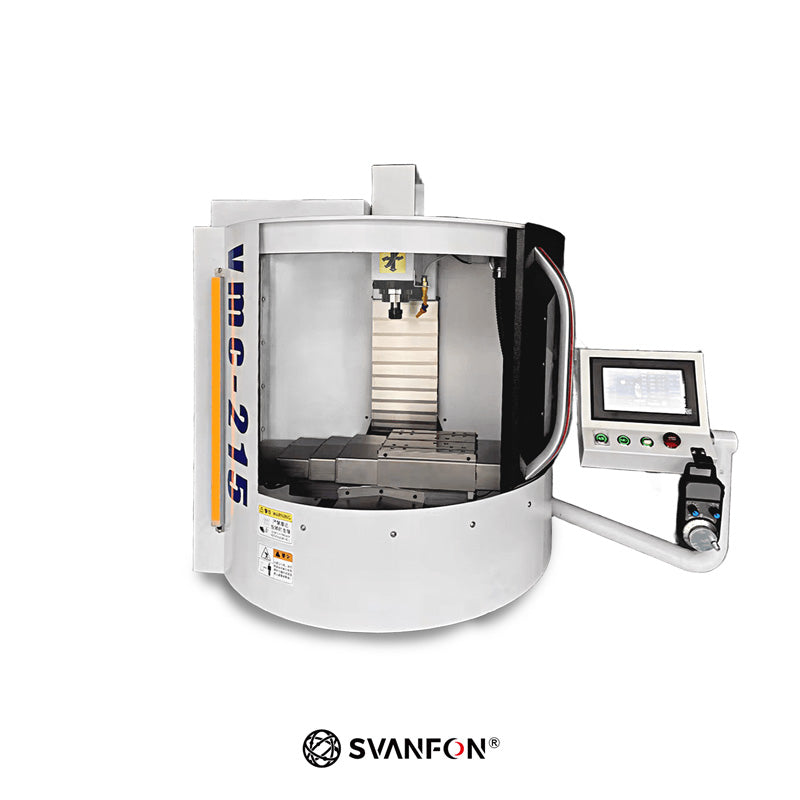

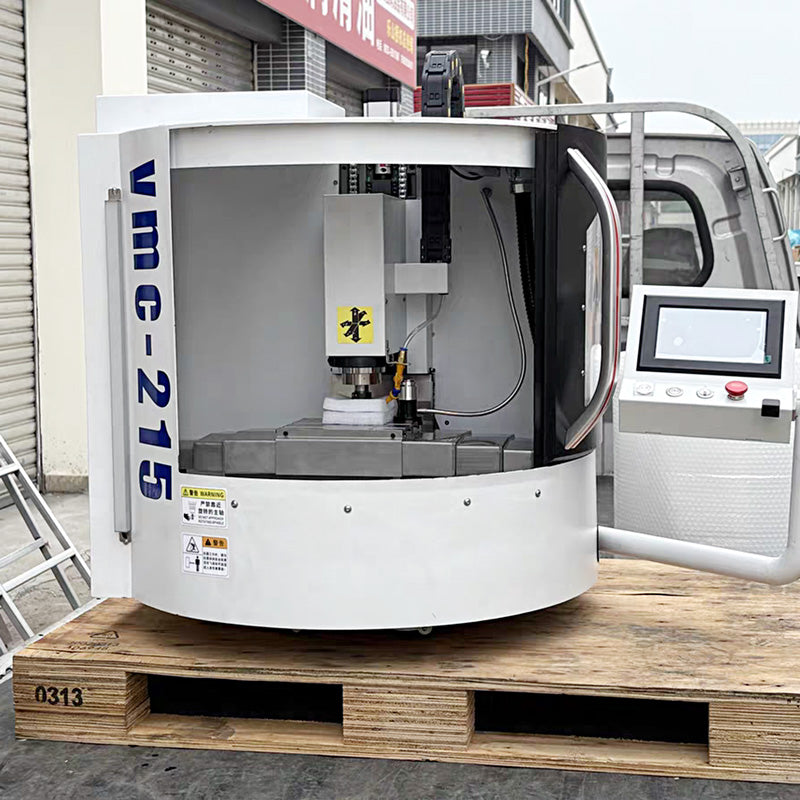

This benchtop CNC milling and engraving machine integrates milling and engraving functions. It adopts a fully enclosed sheet metal structure with user-friendly design and stable performance. It is suitable for processing a wide range of materials including metal (iron, aluminum, copper, stainless steel), wood, and acrylic. It meets diverse application needs and provides an efficient and precise solution for industrial production, mold making, and personalized processing.

2. Core Parameters

(1) Dimensions and Weight

Overall dimensions: 880×810×1100 mm
Net weight: approx. 250 KG
Compact structure, suitable for various workshop layouts, easy for installation and transportation.

(2) Travel Parameters

X-axis travel: 300 mm
Y-axis travel: 166 mm
Z-axis travel: 250 mm

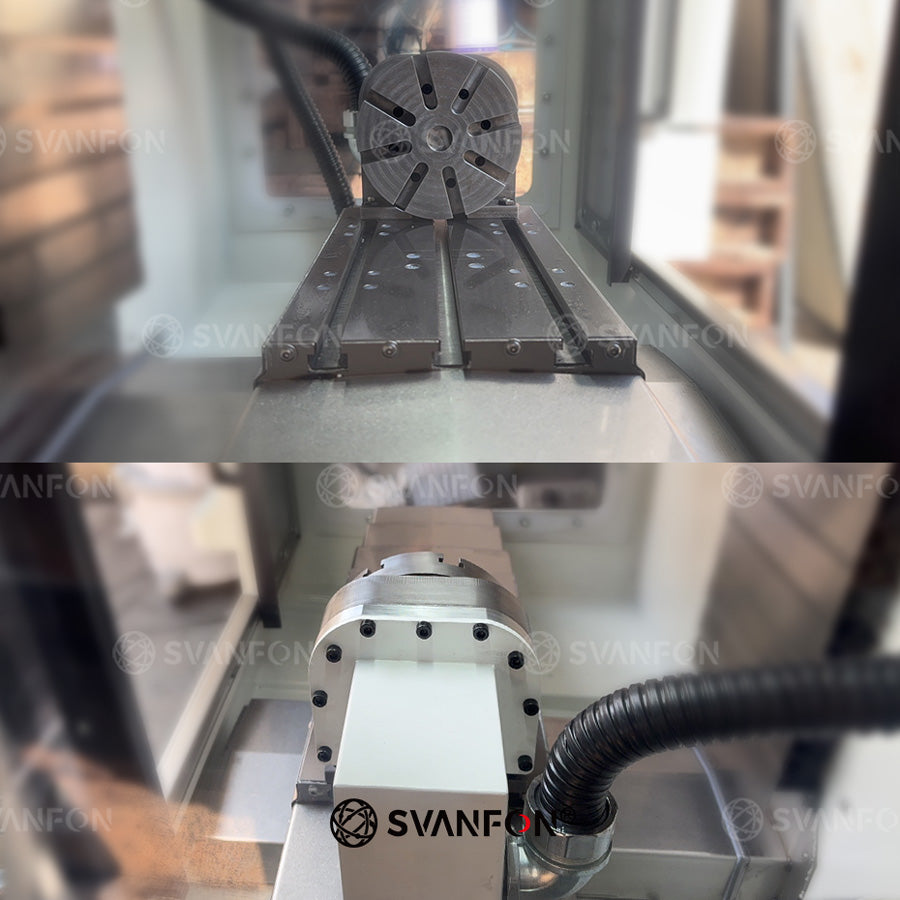

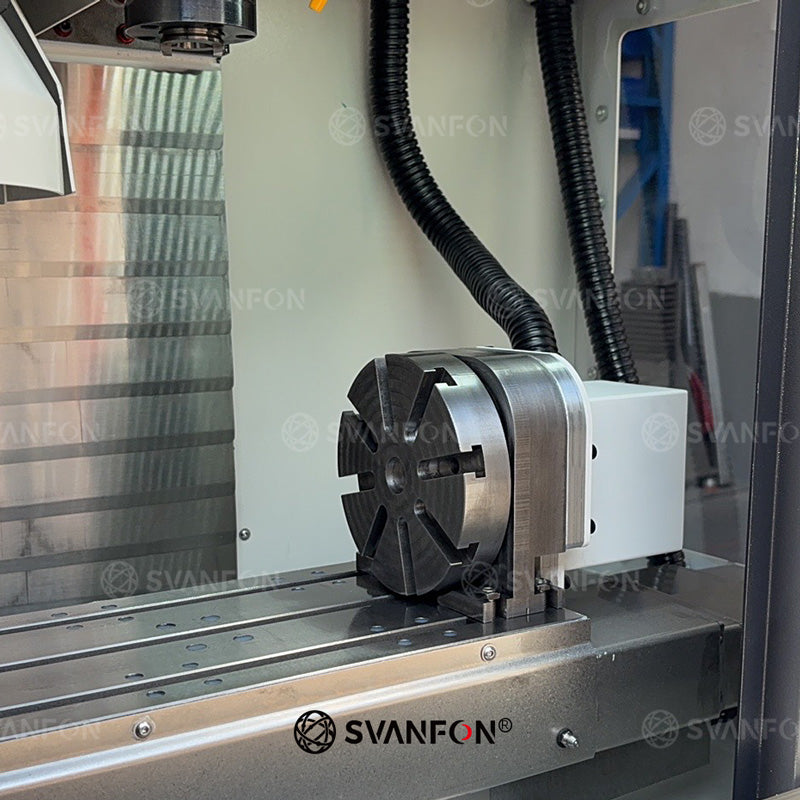

Optional 4th axis rotary table is available, expanding multi-axis machining capability. It supports one-setup polyhedron machining for complex workpieces, improves accuracy and efficiency, and reduces repeated clamping costs.

(3)  Drive System

XYZ, 4th axis and tool magazine axes are driven by 400W absolute servo motors.

(4) Spindle Configuration

The machine provides two spindle options, with belt-driven spindle as standard:
1.Standard: Belt-driven spindle, 1.0 KW, 10,000 RPM, natural cooling
2.Optional: Motorized spindle, 2.2 KW, 24,000 RPM, water cooling
Spindle interface: ISO20-ER20
High-performance spindles cover most machining applications and ensure stable and efficient cutting.

3. Equipment Advantages

(1) Structural Design

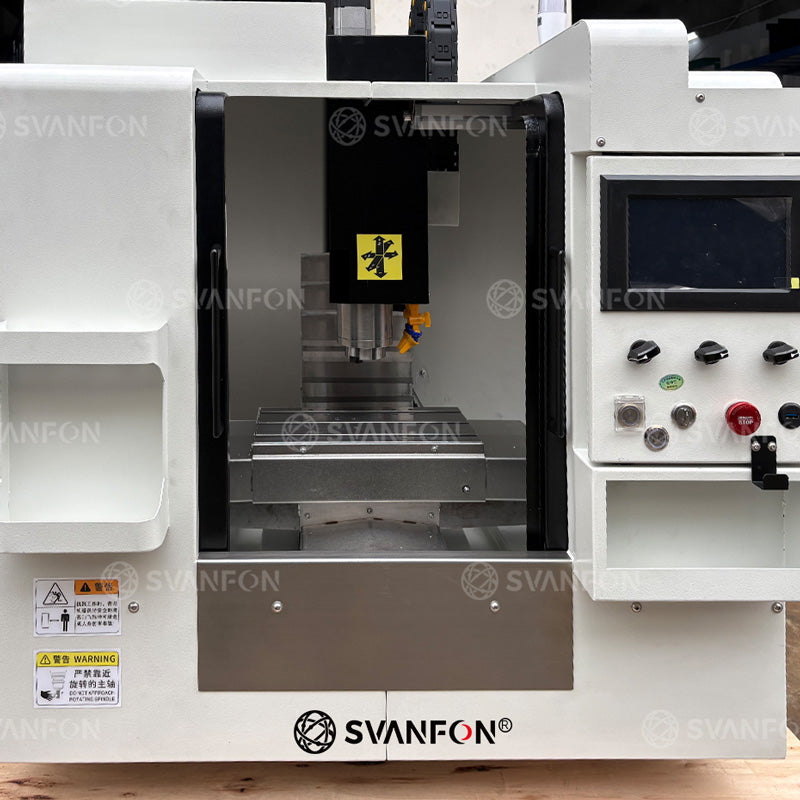

Fully Enclosed Sheet Metal: Fully enclosed protective structure ensures safe and clean operation. It facilitates cutting fluid circulation and helps reduce machining noise, suitable for industrial and workshop environments.

Guide Rails and Ball Screws: Industrial-grade square guide rails feature high rigidity and precision. Combined with high-precision ball screws, the movement is smooth and stable, guaranteeing consistent machining accuracy.

(2)Counterweight System: The machine is equipped with a counterweight balance system to offset the weight of the spindle, greatly reducing the operating load of the Z-axis, improving motion stability and extending service life.

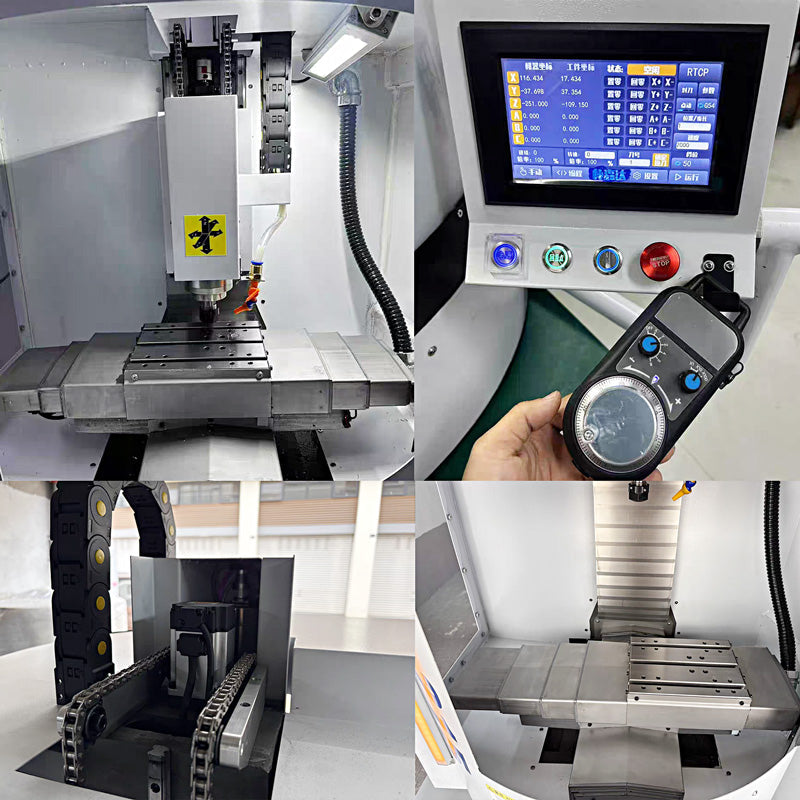

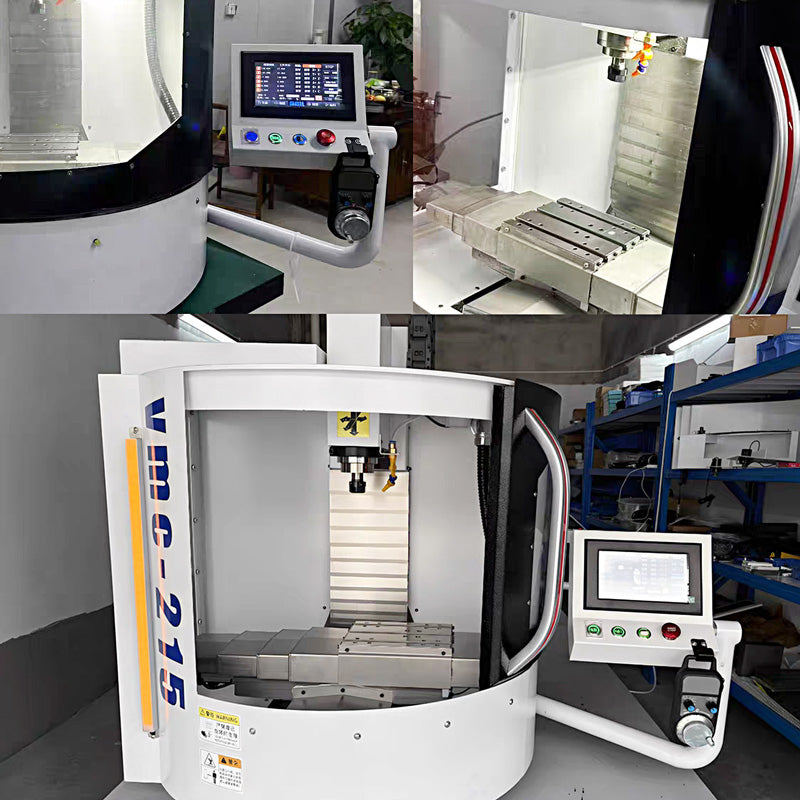

(3)Control System: 7-inch touch screen control with standard wireless handwheel, offering user-friendly and efficient operation.

(3)Filtration & Cooling System: 7-inch touch screen control with standard wireless handwheel, offering user-friendly and efficient operation.

(4)Control System: The machine is equipped with a filtration water tank and circulating water pump for clean and efficient coolant recycling.

(5)ATC Tool Changer: The machine is equipped with an automatic tool change (ATC) magazine with 10 tools. It realizes automatic tool change under complex working conditions, supports automated continuous processing, improves machining efficiency, and meets the production requirements of multi-process and complex workpieces.

Scope of Application

Widely used in hardware processing, craft engraving, mold manufacturing, small parts milling and other fields. It can perform precision machining on iron, aluminum, copper, stainless steel, wood, acrylic and other materials. Suitable for both mass production and personalized customization.

Under normal conditions, after order confirmation, the production cycle is about 15–20 days.
