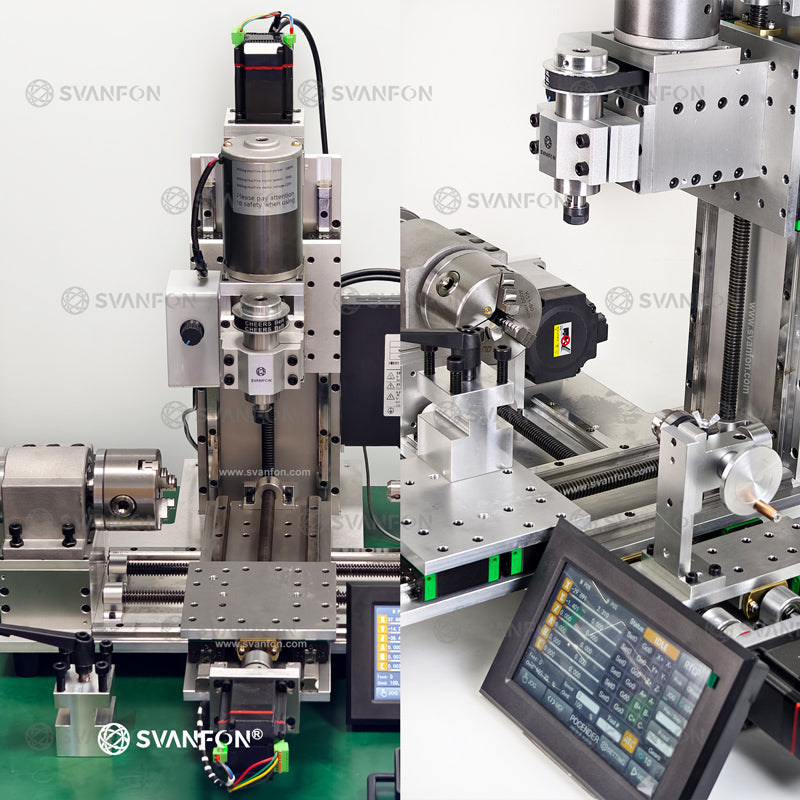

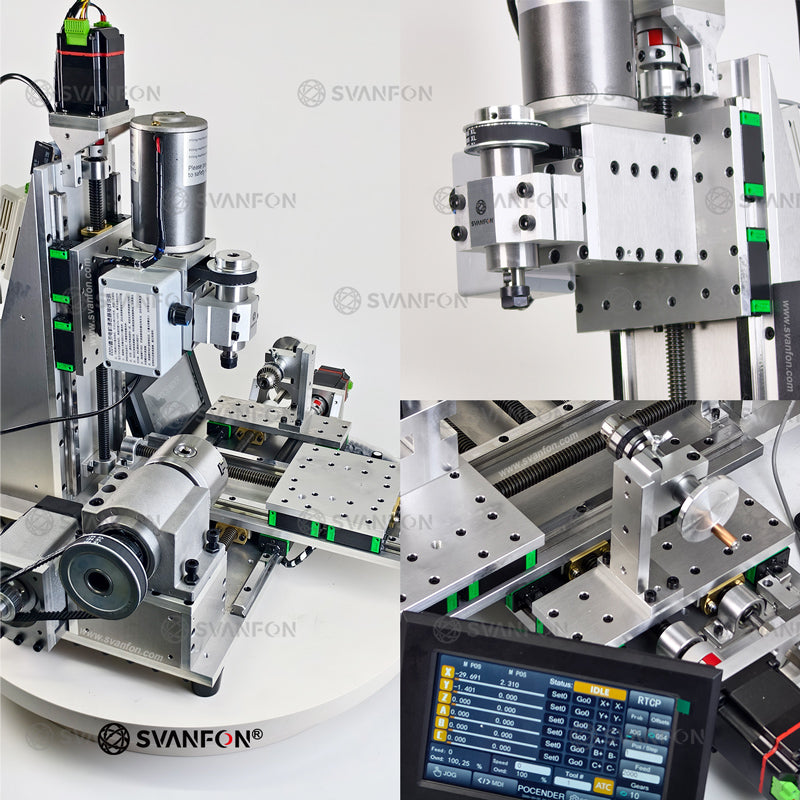

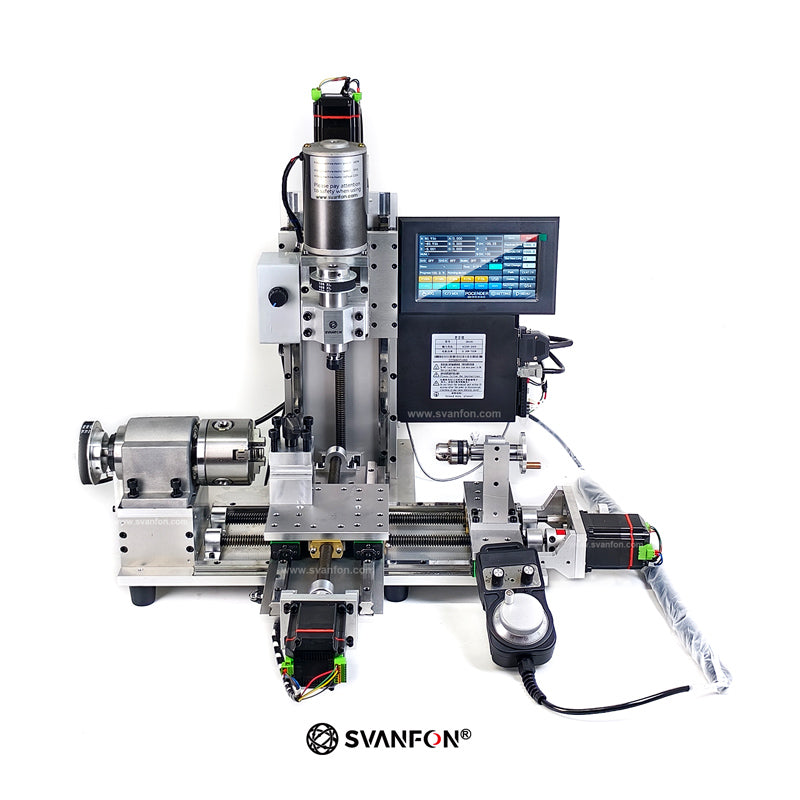

Mini CNC Lathe–Mill–Drill Combo Machine – 3-in-1 Metalworking Centre

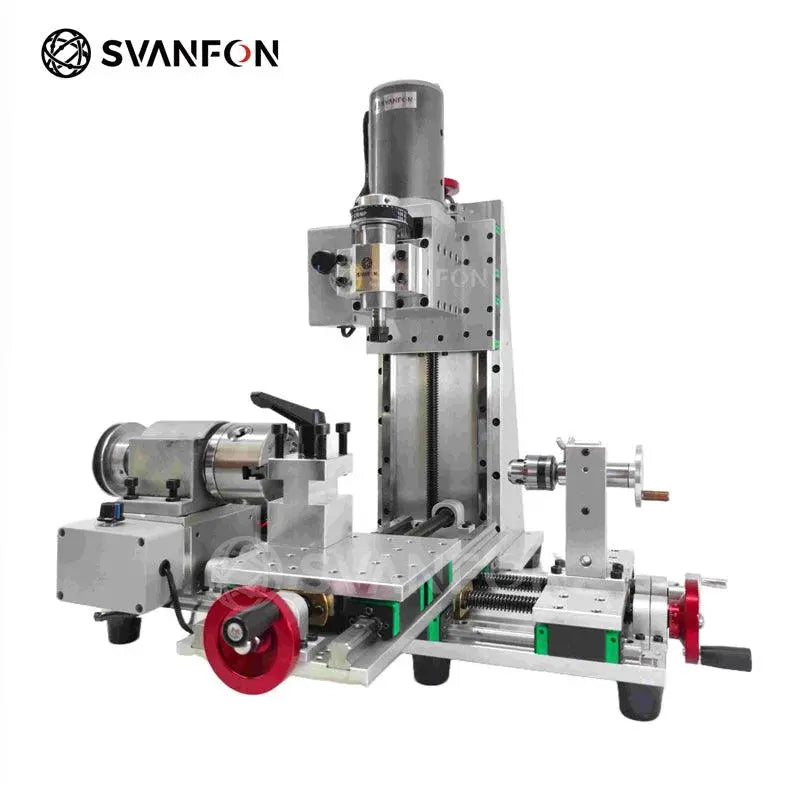

Mini CNC Lathe-Milling Machine (CNC Version)

Product Overview

This compact desktop CNC lathe-milling machine combines turning, milling, drilling, and threading functions in one versatile machine.

Upgraded with a CNC control system and servo threading system, it offers higher precision, smoother operation, and improved automation compared with traditional manual mini machines.

Suitable for:
· Hobby machining
· Prototype development
· Educational training
· DIY projects
· Small parts processing
· Personal workshops

Key Features

· CNC turning, milling, drilling, and threading functions
· Compact desktop-size design
· 750W servo threading system
· 680W milling spindle motor
· 57 closed-loop motor system
· 7-inch touchscreen CNC controller
· Bluetooth electronic handwheel
· ER11 milling spindle
· 80mm three-jaw chuck
· Supports automatic feeding and CNC threading
· Stable and efficient machining performance

Specifications
Machine Size

710 × 710 × 610 mm
Machine Weight
Approx. 43 kg

Lathe Capacity
· Max turning diameter: 60 mm
· Max turning length: 120 mm

Milling Capacity
· Working area: 140 × 120 mm
· Z-axis travel: 140 mm

Motion System
· Max rapid speed: 3000 mm/min
· 57 closed-loop motors

Power Supply
220V
Both the lathe spindle motor and milling spindle motor require AC 220V power input.

If the local voltage does not match the machine requirements, a voltage transformer (step-up converter) can be used to convert the local voltage to 220V, ensuring stable and safe machine operation.

Applicable Materials
Suitable for machining:
· Aluminum
· Copper
· Brass
· Plastics
· Soft metals

Advantages
· Compact all-in-one CNC machine
· Space-saving desktop design
· High upgrade potential
· Easy operation for beginners and advanced users
· Ideal for prototyping and small precision parts

The machine is tested before shipment. Minor scratches or signs of testing are normal.

Transportation Method

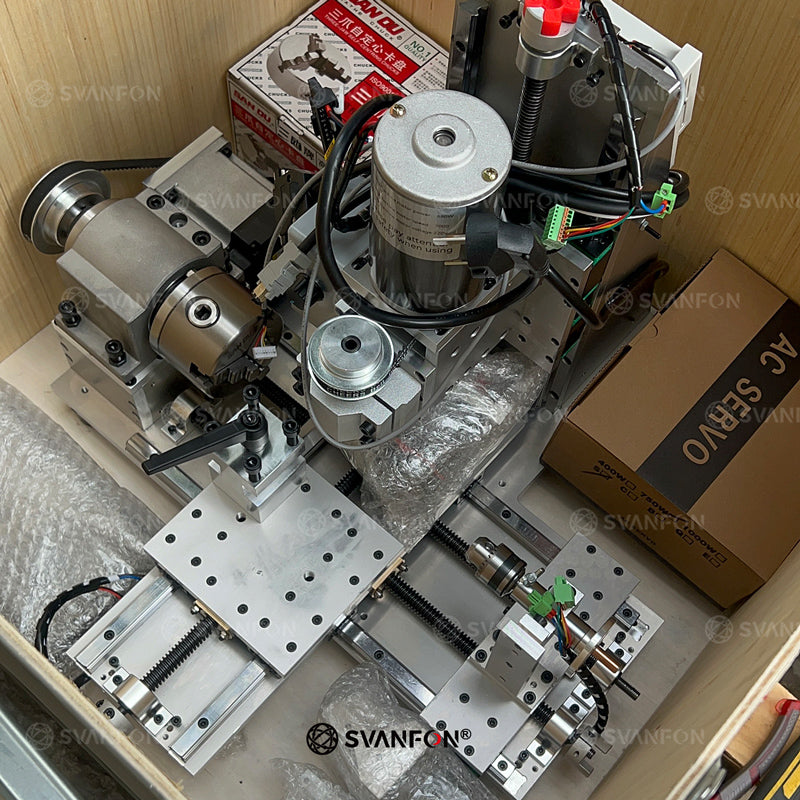

 Assembled finished product way. (Shipped in a wooden crate, total weight 55kg.)
