Cast Iron Bench Drilling Machine - Precision Micro Drilling Machine

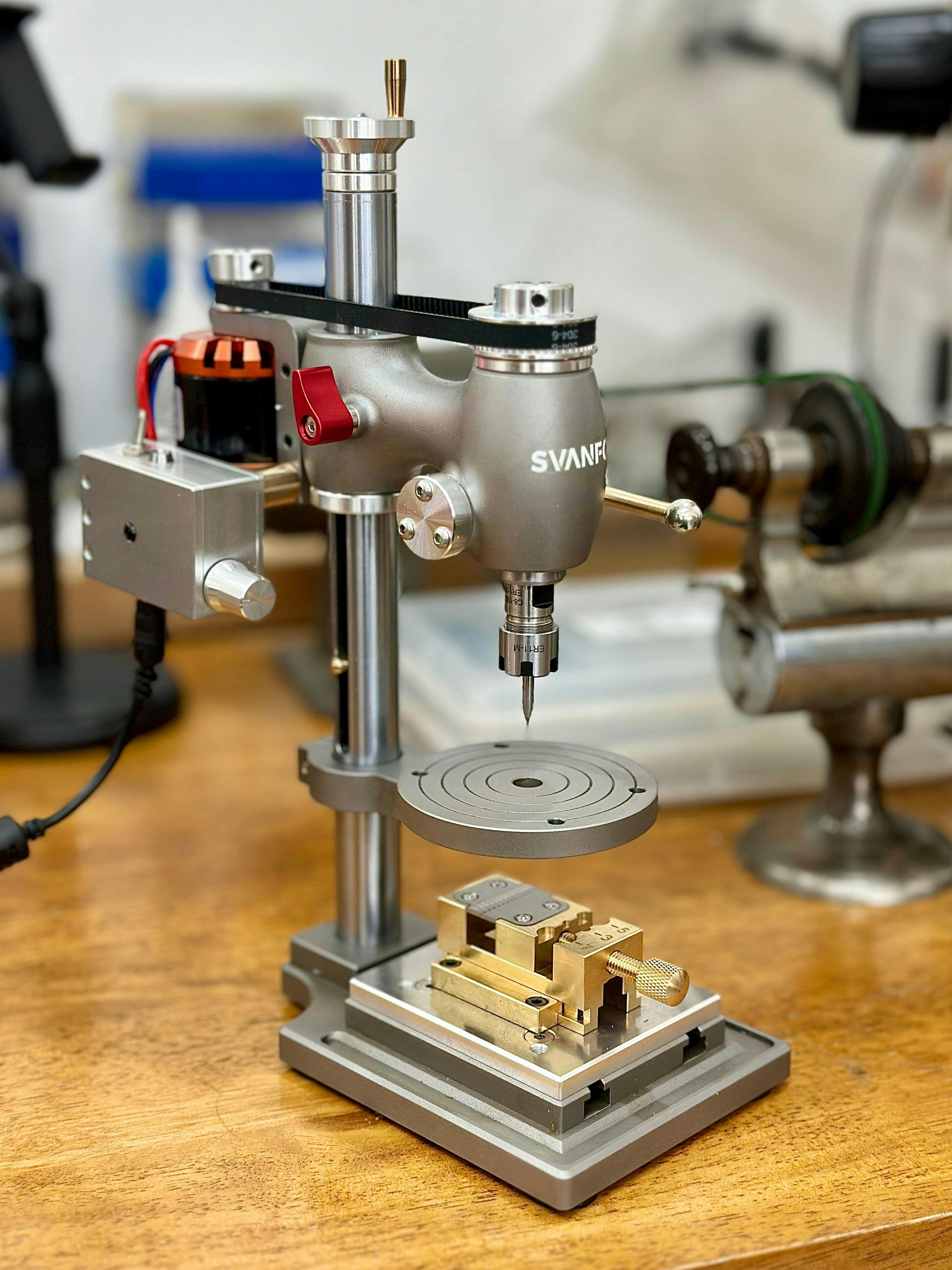

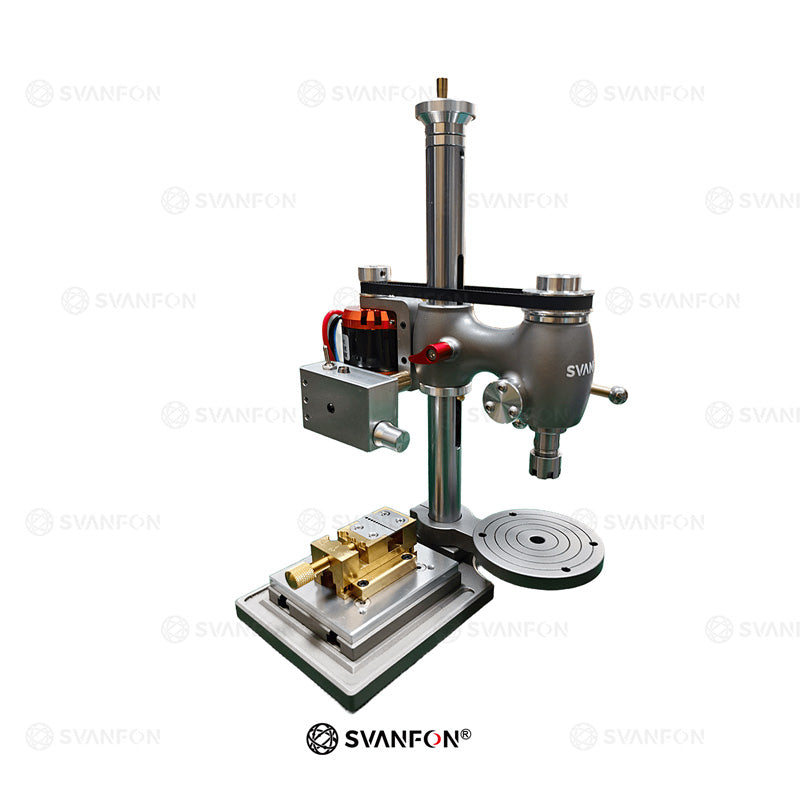

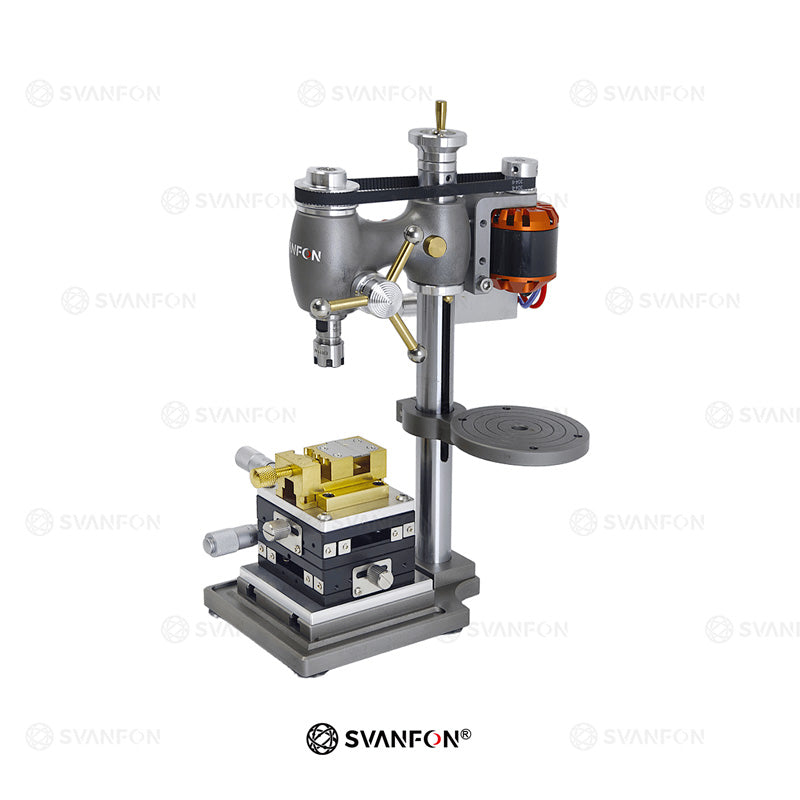

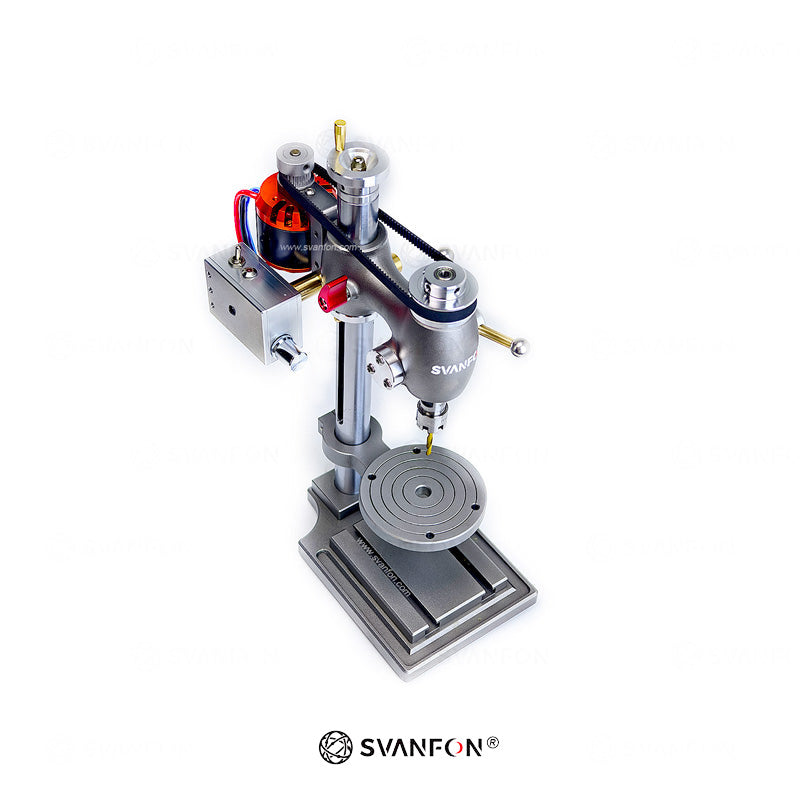

Model 07 Benchtop Drilling Machine - Precision Mini Drilling Machine

I. Product Overview
The Model 07 Benchtop Drilling Machine is a cutting-edge precision tool that combines industrial-grade craftsmanship with user-friendly design. Its compact and sturdy construction delivers drilling accuracy comparable to professional-grade equipment. Whether you're a hobbyist or a professional, it's a reliable partner for tackling complex projects and demanding tasks.

II. Product Features
• High-power brushless motor: 120W output power, 24V supply voltage, and forward and reverse rotation. Spindle speeds of 3800 RPM and motor speeds of 7200 RPM ensure stable, high-torque drilling performance across a wide range of materials.

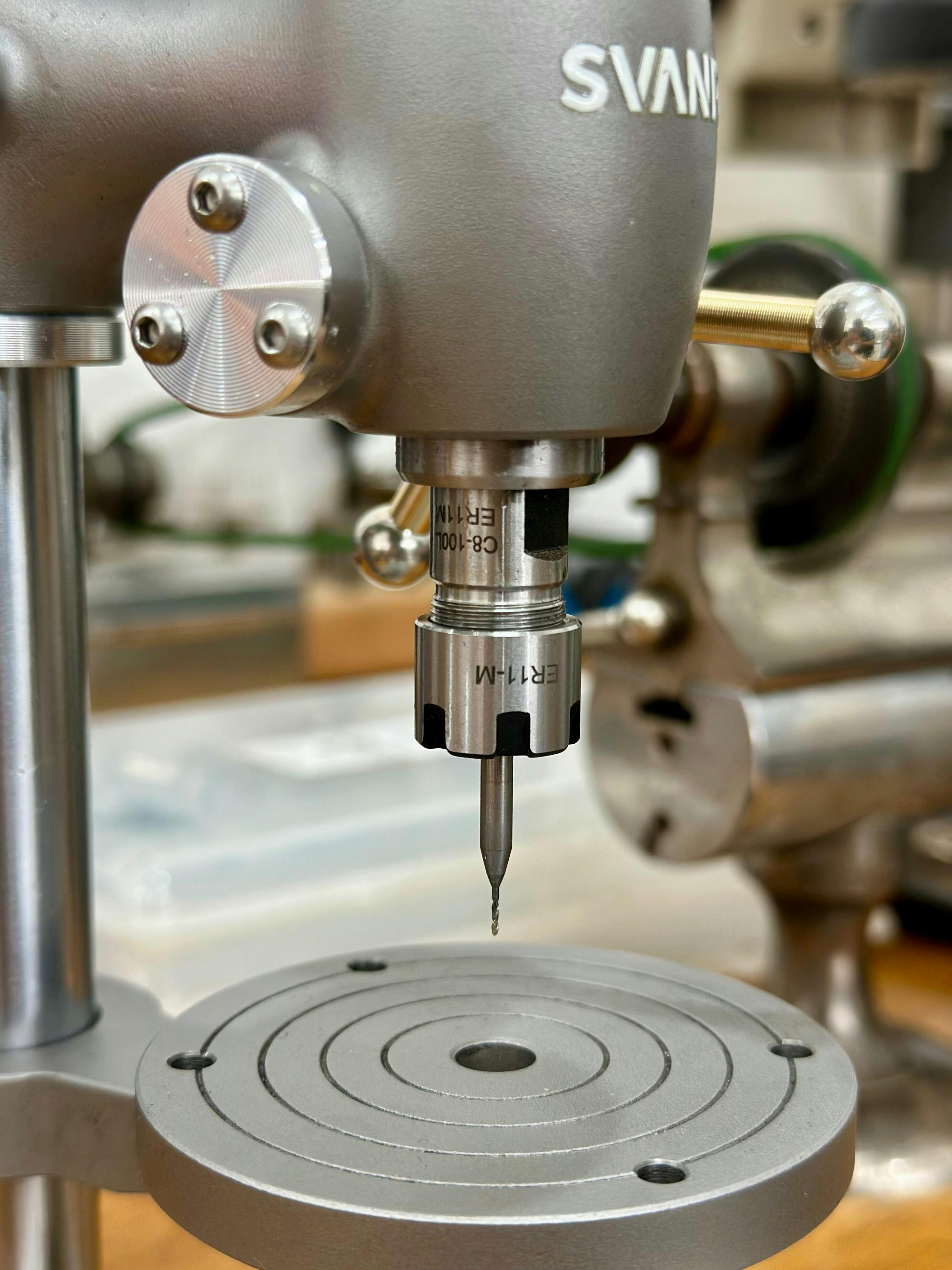

• Precision clamping system: Equipped with an ER11 spindle chuck with a clamping range of 0.5-8 mm. This securely holds the drill bit, ensuring zero runout and high-precision drilling.
• Flexible adjustment: The Z-axis (vertical axis) has an adjustable travel of 100 mm, and the feed handle has a travel of 20 mm, easily meeting drilling requirements of varying depths. • Dual-Table Configuration:

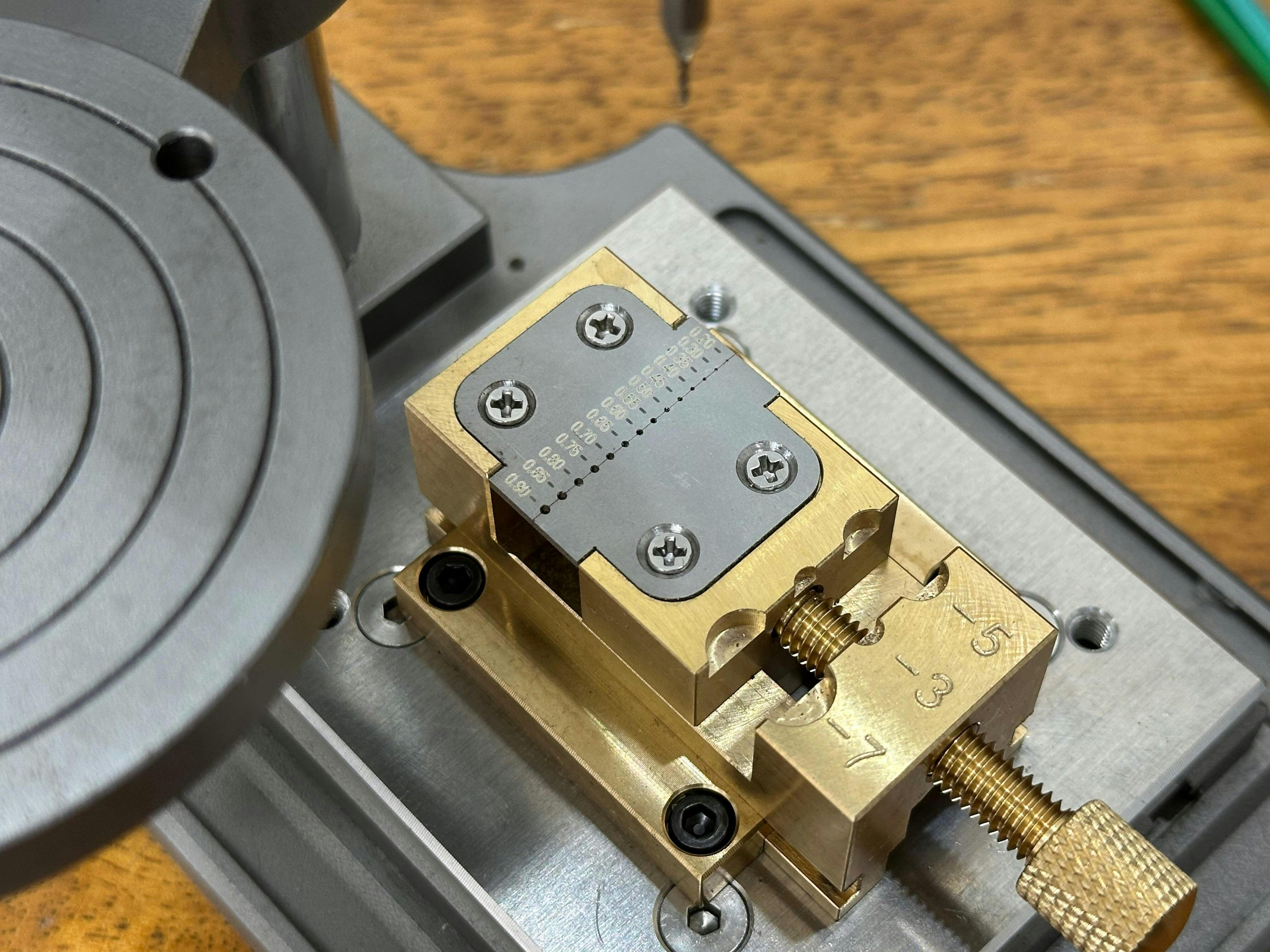

◦ Movable worktable: 70 mm diameter, flexible position adjustment, adaptable to various complex workpieces.
◦ Base worktable: 68 × 80 mm, provides stable support for small workpieces.
• Compact and Sturdy Structure: Measuring 190 × 95 × 230 mm (L × W × H) and weighing only 3 kg, the machine fits easily into any workspace. The 20 mm diameter column ensures stability during high-precision work.

III. Application Scenarios
This machine is widely used in model making (scale models, remote control accessories, etc.), electronics (PCB drilling, component assembly), jewelry and watchmaking (fine metal and gemstone processing), DIY crafts (wood and plastic crafts), and precision drilling in studios and workshops. It is an excellent choice for precision machining across a wide range of industries.
