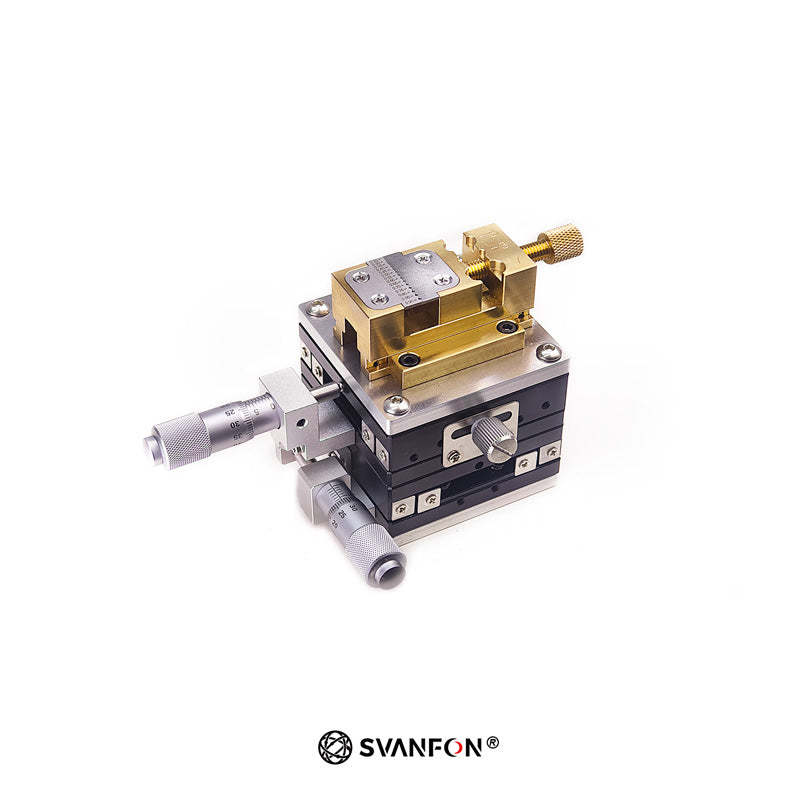

1. Product Name: 60×60 General-purpose Cross Slide Table

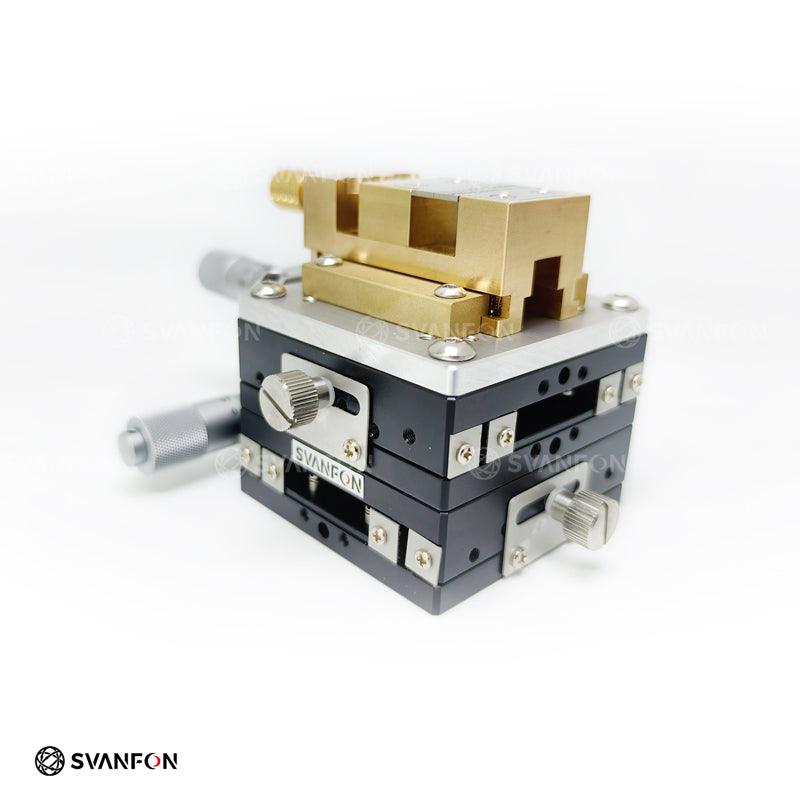

2. Structural Design: It adopts the classic XY dual-axis overlapping design. The X-axis and Y-axis cooperate with each other to flexibly achieve multi-directional and multi-angle displacement operations on the horizontal plane, providing a stable motion foundation for precision operations. The whole is carefully crafted from aluminum alloy material to ensure a firm and lightweight structure, which is convenient for operation and installation while meeting the strength requirements.
3. Dimensions: The overall size is 60×60. This size not only ensures a sufficient working area but also has excellent versatility. It can be perfectly matched with mini bench drills and related bench vices and other tooling fixtures, and can be easily integrated into the working scenarios of small precision machining without the need for complex adaptation and modification work.

II. Functional Features

1. Precision Displacement Control: By using a precise transmission and guiding mechanism, it can achieve micron-level displacement accuracy. When working in coordination with a mini bench drill, it can precisely control the position of the workpiece to ensure that the drill bit can accurately perform drilling operations on the workpiece. For example, in the drilling processing of small electronic components, watch parts and other tiny parts, it effectively avoids processing errors caused by positioning deviations, greatly improving the processing accuracy and quality of products and also enhancing the production efficiency.
2. Flexible and Convenient Operation: The operation method is simple and user-friendly. The operator can easily adjust the displacement of the X-axis and Y-axis to quickly change the relative position between the workpiece and the drill bit. During the process of using it in combination with a mini bench drill and a bench vice, there is no need to frequently disassemble or re-clamp the workpiece. Only through the flexible movement of the slide table can the drilling requirements at different positions be met, reducing the operation steps and time cost, reducing the work intensity of the operator, and making the entire processing process more smooth and efficient.
3. Combination Application Advantages: The tabletop and the base are equipped with mounting holes with standard hole pitches, which are convenient for combination and connection with other equipment. When used in combination with a mini bench drill and a bench vice, the bench vice can be stably installed on the slide table through the standard hole positions to achieve a firm clamping of small workpieces. The slide table, relying on its precise displacement function, precisely delivers the workpiece on the bench vice to the bottom of the drill bit of the bench drill, forming an efficient small precision machining unit. This combination is widely used in the batch production of small precision parts, the drilling processing of complex-shaped parts and other tasks, fully meeting the strict requirements of the small precision machining field for high precision, multi-function and easy operation of equipment.
