Stainless Steel Universal Bench Vise 03

Product Introduction

I. Product Overview

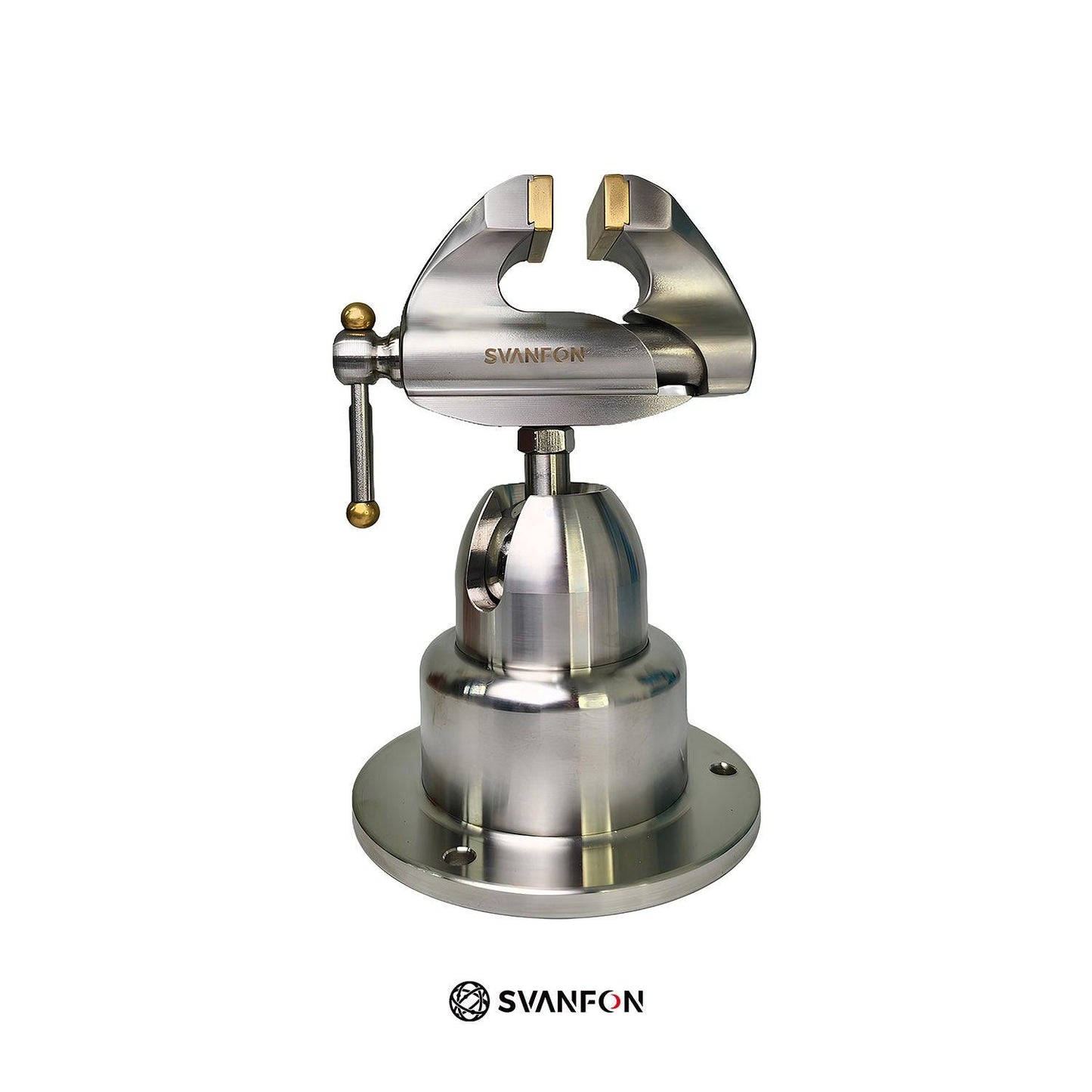

The stainless steel universal bench vise (03) is a tool meticulously designed for fields such as handicraft production and model - making. It combines high - quality materials with exquisite craftsmanship to provide users with stable and reliable workpiece clamping solutions.

II. Product Features

(I) High - Quality Materials

The main body is made of 304 stainless steel, which has the characteristics of high strength and good toughness. In actual use, it can withstand large clamping forces and ensure no deformation during use, guaranteeing the durability and stability of the tool.

(II) Exquisite Craftsmanship

The product surface is polished, which not only makes the bench vise rust - proof, extending its service life, but also makes its appearance more beautiful, enhancing the overall texture of the product.

(III) Unique Design

1. Flexible Clamping Head

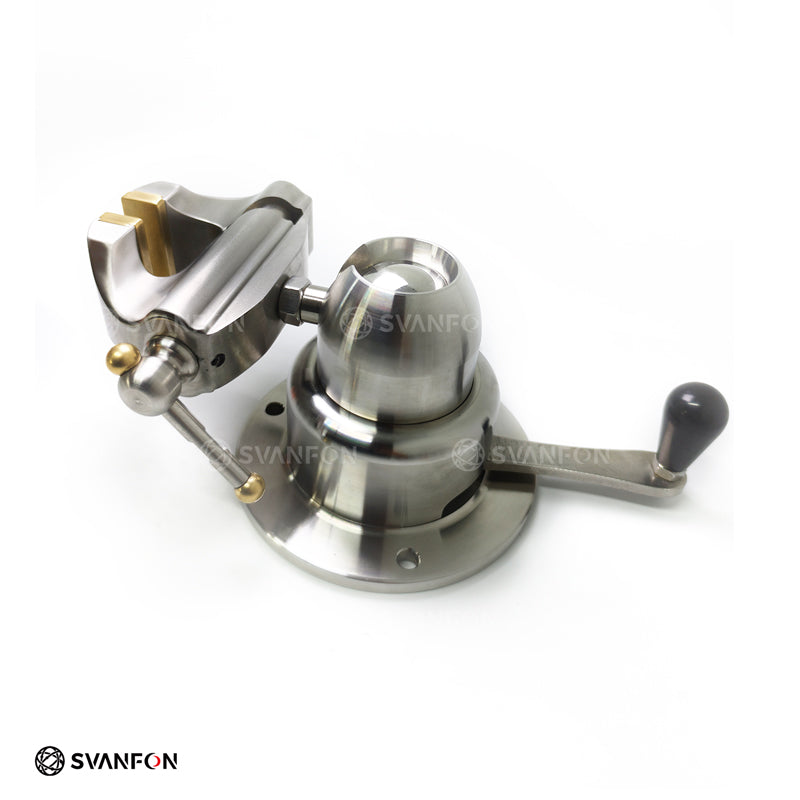

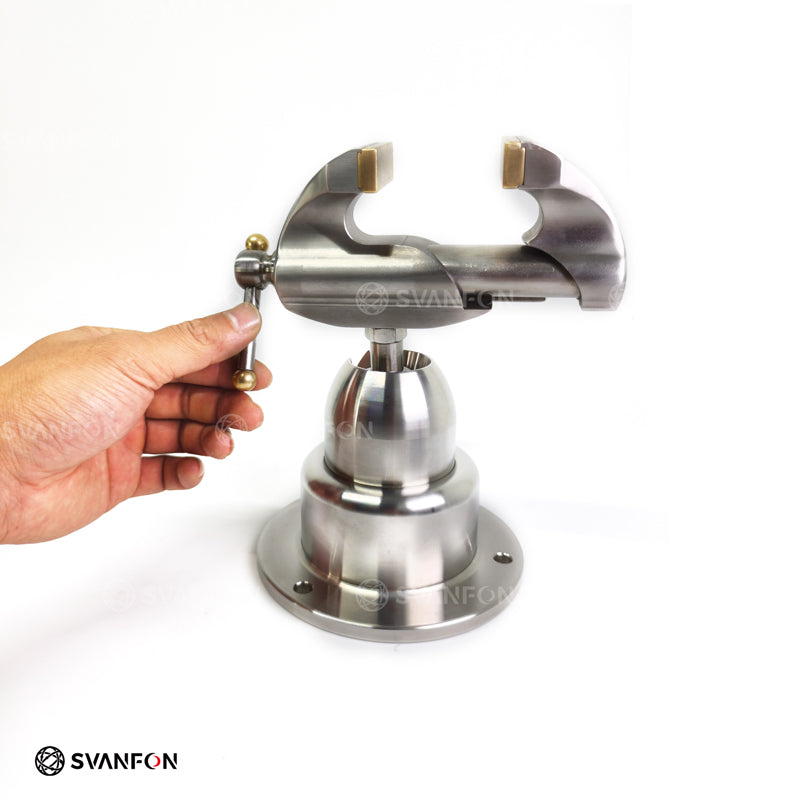

- The clamping head has the functions of swinging up and down and rotating left and right. This unique design enables the bench vise to adapt to clamping operations at different angles and easily handle various complex working scenarios, providing great convenience for users during operation.
2. Rotatable Base

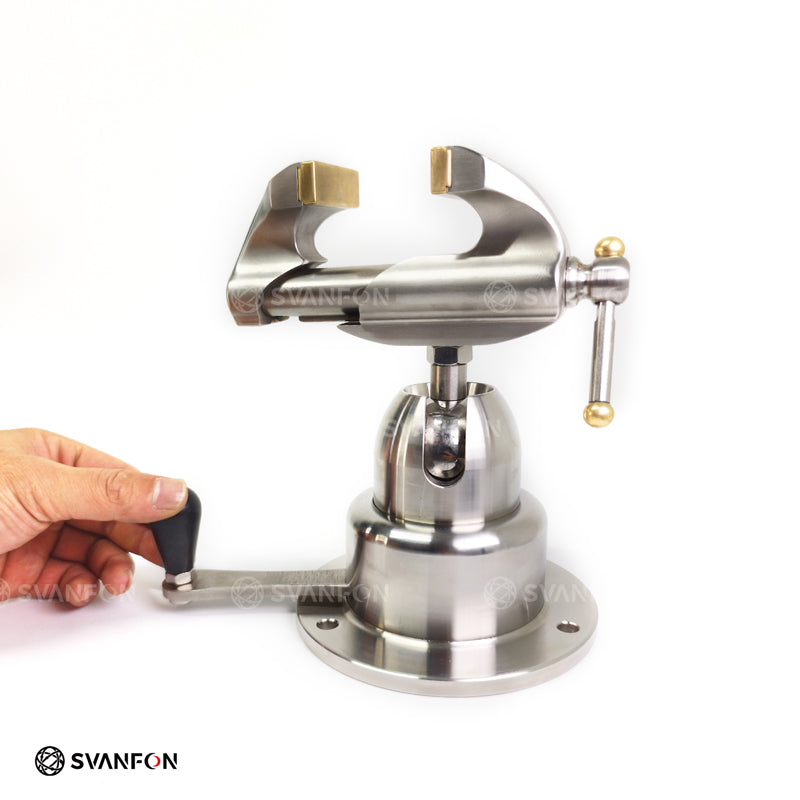

- The base can rotate 360 degrees. This function allows users to adjust the direction without frequently moving the workpiece during operation, effectively improving work efficiency and saving operation time.

(IV) Precise Parameters

1. Clamping Width: The clamping width of the bench vise is 50mm, which can meet the clamping requirements of most small workpieces, ensuring stable clamping operations for various small - sized workpieces.
2. Length of Vise Body and Total Height
- When closed, the length of the vise body is 125mm, and the total height is 185mm. This reasonable size design makes the bench vise convenient to operate and carry.
3. Maximum Clamping Size and Depth
- The maximum clamping size is 60mm, and the depth is 40mm, which can meet the clamping requirements of workpieces within a certain size range, ensuring good performance when handling workpieces of different sizes.
4. Base Diameter and Handle Width
- The base diameter is 139mm, and the maximum handle width is 205mm. This size design ensures the stability and comfort of operation when using the bench vise.
5. Spacing of Fixing Screw Holes
- The spacing of fixing screw holes is 119mm (M8 - 3). This precise design ensures the accuracy and stability of the bench vise during installation and use, avoiding usage problems caused by improper installation.
6. Height and Jaw Configuration
- The height of the bench vise is 212mm, and it is equipped with two pairs of jaws, copper jaws and stainless steel jaws respectively. In addition, the jaws are designed with a magnetic suction function, which facilitates the installation operation of the jaws and further improves the user's experience.

(V) Weight

The product weighs 5.15 kg. The moderate weight makes it neither too light to cause insufficient stability nor too heavy to affect the convenience of operation during use.

III. Applicable Scenarios

The stainless steel universal vise (03) is widely applicable to multiple fields such as handicraft production, model - making, mechanical maintenance, and electronic assembly. Whether in a home studio, a school laboratory, or a professional factory workshop, it can provide users with efficient and stable workpiece clamping services by virtue of its unique advantages.
