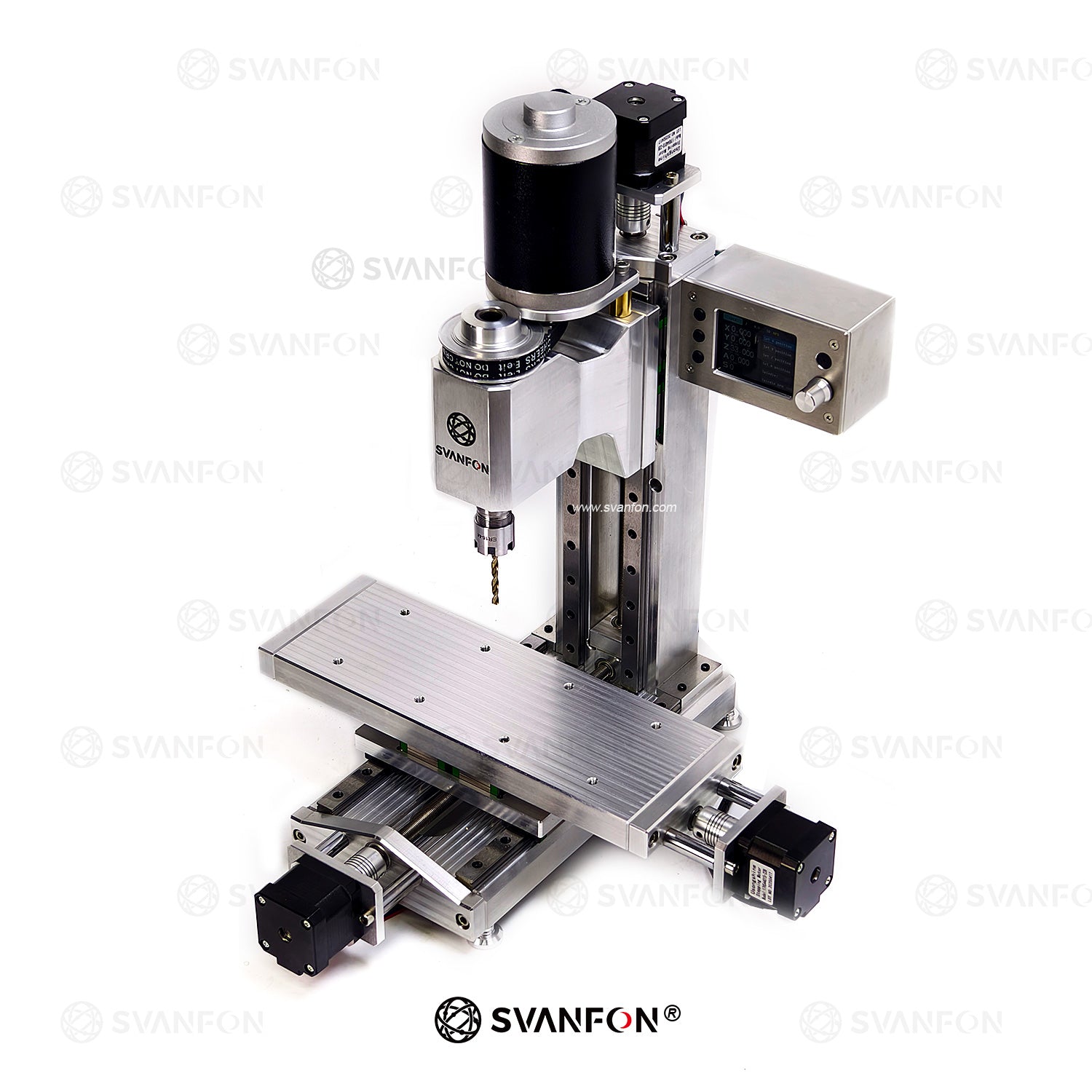

Precision Mini CNC Machine: Efficient and Compact Desktop Machining Solution

Precision Mini CNC Mill Machine

Efficient and Compact Desktop Machining Solution

Designed for small-scale machining needs, this precision mini CNC machine combines a compact build, stable performance, and flexible operation.
It is an ideal choice for handcrafting, model processing, and small-batch production.

Whether working with metal, wood, or plastic, it handles a variety of materials with ease—supporting your entire workflow from design to finished products

🔧 Core Specifications & Performance Highlights

✅ Compact Design for Flexible Placement
• Overall size: 310 × 310 × 390 mm
• Net weight: 10.5 kg
• Desktop-style build saves space—perfect for workshops, labs, or home use.
• Worktable size: 245 × 100 mm, with a maximum load of 10 kg.
• Stably supports a variety of small to medium workpieces.

✅ Precise Travel Range for Versatile Machining
• XYZ travel: 110 mm × 113 mm × 72 mm
• Spindle-to-table adjustable distance: 20–92 mm
• Covers milling, drilling, and other small-part machining needs
• Ensures machining accuracy across various thicknesses and sizes

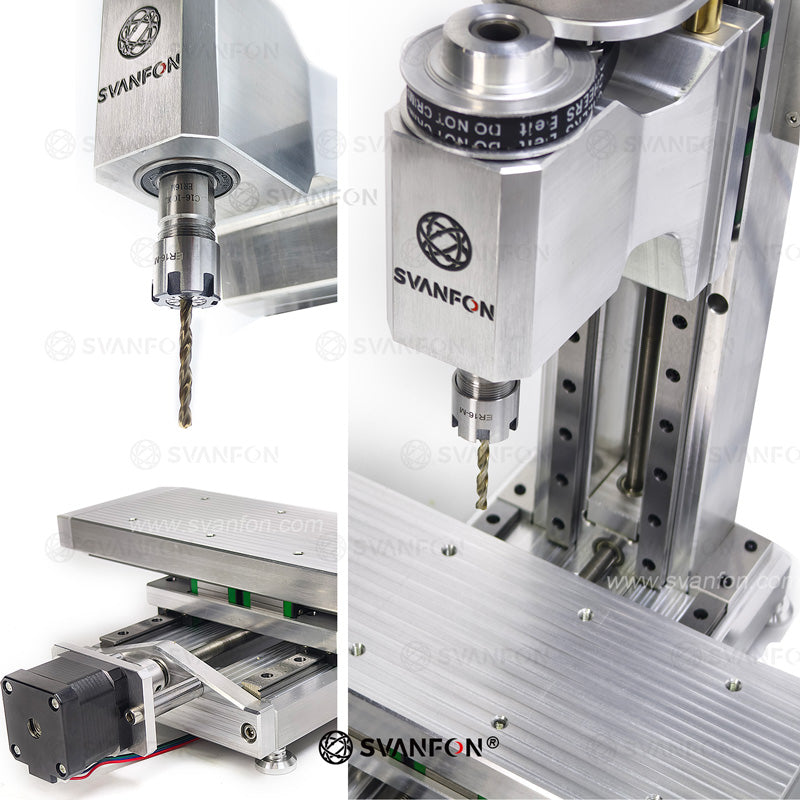

✅ Powerful Spindle for Efficient Cutting
• Spindle speed: up to 10,000 rpm
• Power: 200–300W
• Collet type: ER11, clamping range: 1–7 mm
• Compatible with a wide variety of tools
• Delivers stable and efficient cutting on metal, wood, acrylic, and more

✅ Stable Drive for Reliable Operation
• Driven by three-axis stepper motors
• Moving speed: 2000–3500 mm/min
• Positioning accuracy: ±0.5 mm
• Repeat positioning accuracy: ±0.03 mm
• Ensures smooth, stable, and precise operation for long-term use

✅ Flexible Programming for Easy Use
• Supports software editing and file import
• Compatible with mainstream CAD/CAM design files
• No complex programming required
• Ideal for beginners to quickly start and manage batch production of custom designs

✅ Universal Voltage Compatibility
• Input voltage: 110–220V
• Supports dual-voltage for use in different regions
• Eliminates compatibility concerns and improves convenience

💡 Ideal Applications

Whether you’re:
• A model enthusiast crafting precision parts
• An artisan processing custom components
• A small workshop managing batch production

This mini CNC machine delivers efficiency, precision, and ease of use.

It streamlines your machining process and ensures exceptional results.

✅ Choose this machine to:
• Keep every step precise and controllable
• Turn your ideas into tangible products faster

Code, Our equipment is compatible with all types of CNC programming software that can export files in NC format (G-code), provided that the programs do not contain irrelevant codes such as homing commands.

Among these options, Artcam 2018 features user-friendly operation and is our recommended choice.

Alternatively, you may select other software you are familiar with based on your preferences.
